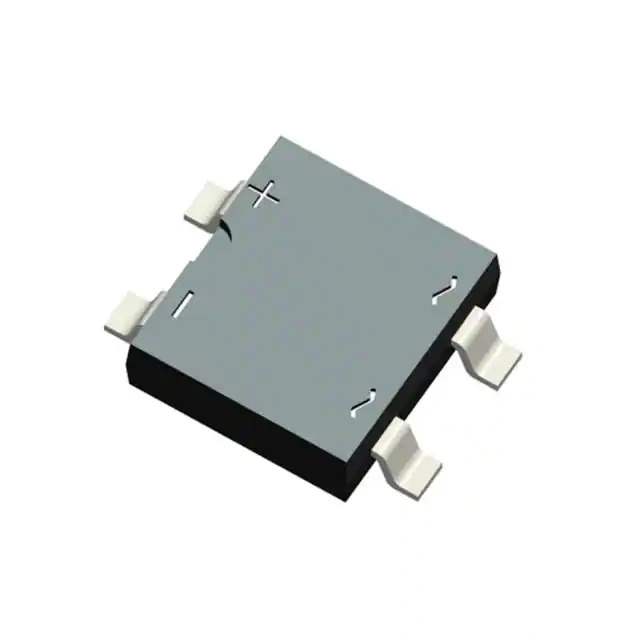

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package MBF
Base Product Number MB2
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 632936-MB2F
Ultra Librarian 3D Model Ultra Librarian MB2F CAD Model

Description

The 632936-MB2F is a single-phase bridge rectifier diode designed for standard applications manufactured by SMC Diode Solutions.

  • Average Rectified Current: 500mA
  • Forward Voltage Drop: 1.1V @ 800mA
  • Peak Reverse Voltage: 200V
  • Reverse Leakage Current @ 200V: 5μA
  • Package: surface mount package (4-SMD, Gull Wing)
  • Operating Temperature Range: -55°C to 150°C
  • Status: active product
  • Suitability: suitable for applications that require a single-phase bridge rectifier diode with a peak reverse voltage of 200V and an average rectified current of 500mA
