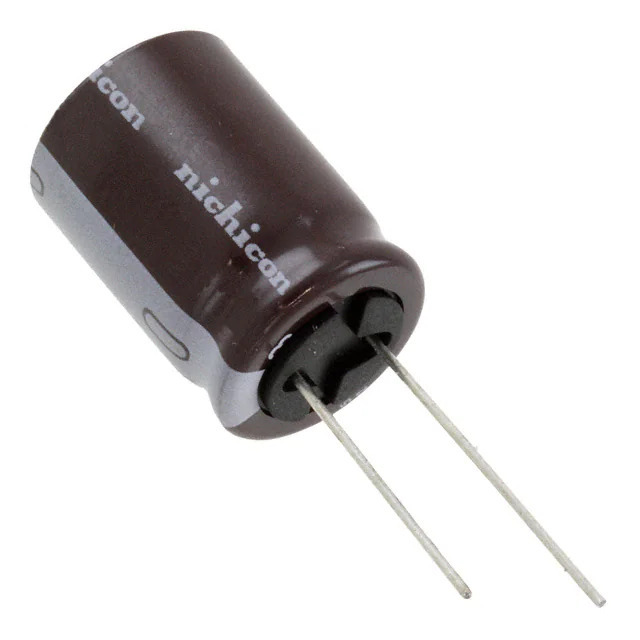

Same model may have multiple batches, images only for reference.

UCS2E151MHD

Name: UCS2E151MHD
Brand: Nichicon
SKU: 1357993
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCS2E151MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 250V RADIAL / 150 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UCS2E151MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCS
Package	Bulk
Product Status	Active
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	250 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	970 mA @ 120 Hz
Ripple Current @ High Frequency	1.94 A @ 100 kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357993-UCS2E151MHD
Ultra Librarian 3D Model	Ultra Librarian UCS2E151MHD CAD Model

Description

The UCS2E151MHD is a radial can aluminum electrolytic capacitor from Nichicon.

Capacitance: 150 µF
Voltage Rating: 250 V
Application: General Purpose
Operating Temperature: -40°C to 105°C
Tolerance: ±20%
Ripple Current (120 Hz): 970 mA
Ripple Current (100 kHz): 1.94 A
Lifetime: 10000 hours @ 105°C
Mounting Type: Through Hole
Lead Spacing: 7.50mm
Diameter: 0.709"
Height: 1.043"
REACH: Unaffected
ECCN: EAR99
Lifecycle Status: Active
