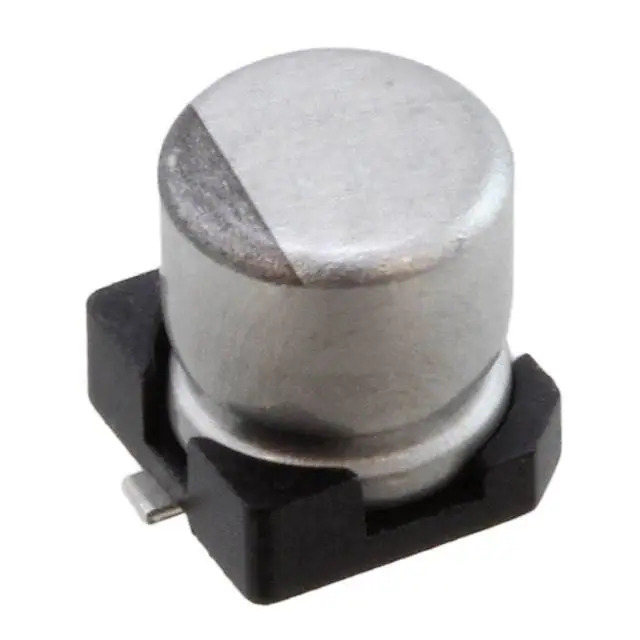

Same model may have multiple batches, images only for reference.

UCM1E221MCL1GS

Name: UCM1E221MCL1GS
Brand: Nichicon
SKU: 1360140
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCM1E221MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 25V SMD / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCM1E221MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCM
Package	Tape & Reel
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	160 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360140-UCM1E221MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCM1E221MCL1GS CAD Model

Description

The Nichicon UCM series aluminum electrolytic capacitor is an active component suitable for automotive applications.

Capacitance: 220 µF
Voltage Rating: 25 V
Mounting Type: Surface Mount
Tolerance: ±20%
Ripple Current (Low Frequency): 300 mA @ 120 Hz
Ripple Current (High Frequency): 600 mA @ 100 kHz
Lifetime: 2000 hours @ 105°C
Component Type: Radial, Can - SMD
Size/Dimension: 0.248" diameter (6.30mm)
Height (Seated): 0.315" (8.00mm)
AEC-Q200 Compliant: Yes
Manufacturer: Nichicon
