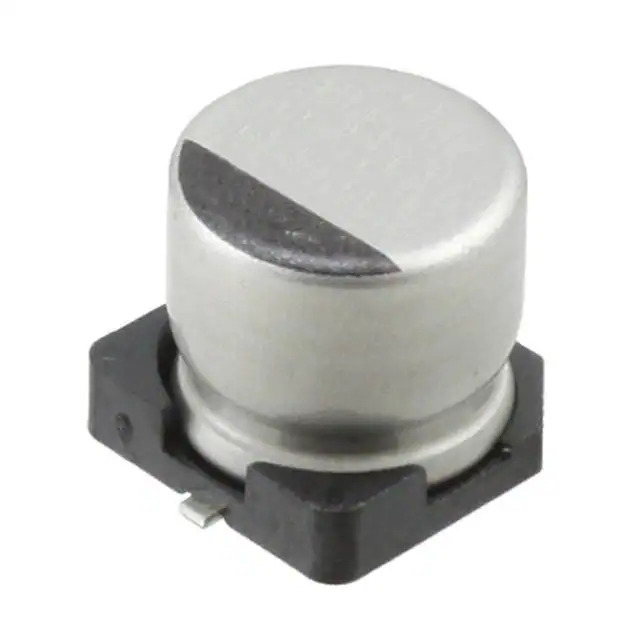

Same model may have multiple batches, images only for reference.

UCL1V101MCL6GS

Name: UCL1V101MCL6GS
Brand: Nichicon
SKU: 1360380
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCL1V101MCL6GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V SMD / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCL1V101MCL6GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCL
Package	Tape & Reel
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	160 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360380-UCL1V101MCL6GS
Ultra Librarian 3D Model	Ultra Librarian UCL1V101MCL6GS CAD Model

Description

The UCL series aluminum electrolytic capacitor from Nichicon is a reliable component suitable for general-purpose applications. UCL series is from Nichicon.

Capacitance: 100 μF
Voltage Rating: 35 V
Tolerance: ±20%
Lifetime: 2000 hours @ 105°C
Mounting: Surface Mountable
Size (Diameter): 0.248"
Height: 0.303"
Ripple Current (Low Frequency): 300 mA @ 120 Hz
Ripple Current (High Frequency): 600 mA @ 100 kHz
Product Status: Active
