Same model may have multiple batches, images only for reference.

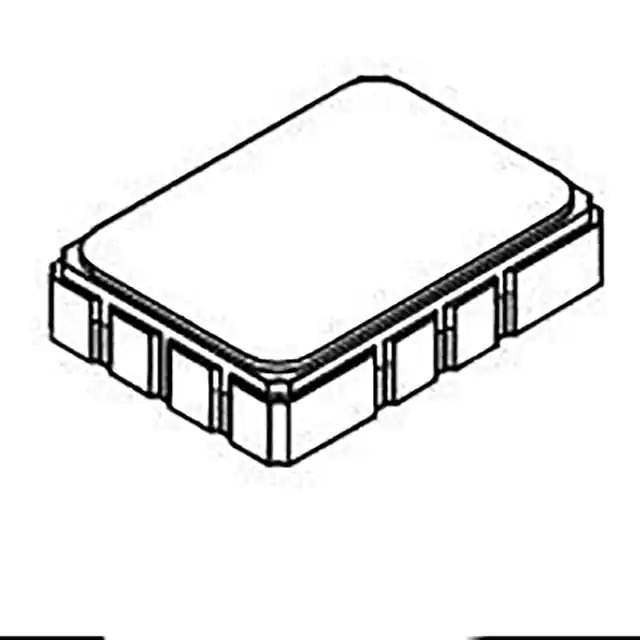

SF1140B Real Image
Same model may have multiple batches, images only for reference.

SF1140B

Part No SF1140B
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Description FILTER, SAW, 75 MHZ, 10SMD
Datasheet
SF1140B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr RF Monolithics, Inc
Package Tape & Reel (TR)Tape & Reel (TR)Bag
Product Status Active
Frequency - Center 75MHz
Bandwidth 5.4MHz
Insertion Loss 11dB
Applications IF, SDARS
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number SF1140
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 665114-SF1140B
Ultra Librarian 3D Model Ultra Librarian SF1140B CAD Model

Description

The SF1140B is a SAW filter designed for IF and SDARS applications.

  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Insertion Loss: 11dB
  • Center Frequency: 75MHz
  • Bandwidth: 5.4MHz
  • Mounting Type: Surface Mount
  • Package: 10-SMD, No Lead
  • Packaging: Tape & Reel
  • Pieces Per Package: 1,000
  • AEC-Q200: Yes
  • Height: 0.079" (2.00mm)
  • Manufacturer: RF Monolithics, Inc
  • Series: SF1140
  • Product Status: Active
