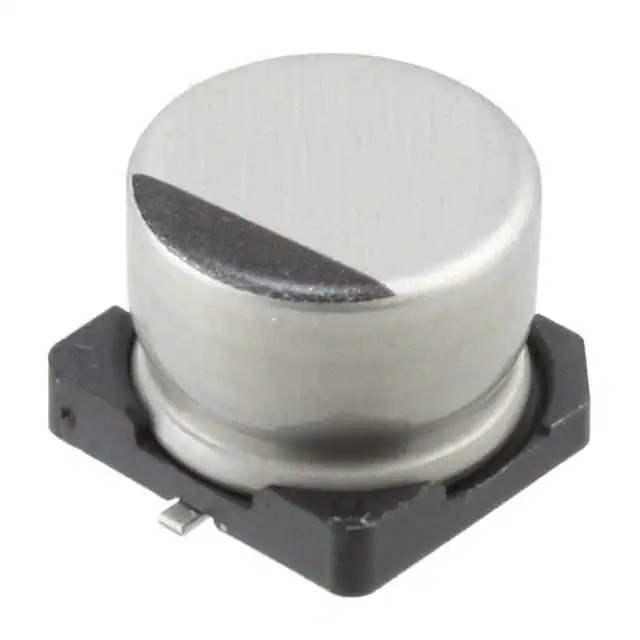

Same model may have multiple batches, images only for reference.

UCL1A331MNL1GS

Name: UCL1A331MNL1GS
Brand: Nichicon
SKU: 1360393
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCL1A331MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 10V SMD / 330 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCL1A331MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCL
Package	Tape & Reel
Product Status	Active
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	425 mA @ 120 Hz
Ripple Current @ High Frequency	850 mA @ 100 kHz
Impedance	80 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360393-UCL1A331MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCL1A331MNL1GS CAD Model

Description

The UCL1A331MNL1GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon.

Capacitance: 330 μF
Voltage Rating: 10 V
Application: General Purpose
Tolerance: ±20%
Ripple Current (Low Frequency): 425 mA @ 120 Hz
Ripple Current (High Frequency): 850 mA @ 100 kHz
ESR (Equivalent Series Resistance): Not Specified
Size: 0.315" Dia (8.00mm)
Height: 0.394" (10.00mm)
Mounting Type: Surface Mount
Package: Tape & Reel
Lifetime: 2000 Hours @ 105°C
RoHS Compliant: Yes
REACH Unaffected: Yes
Series: UCL
