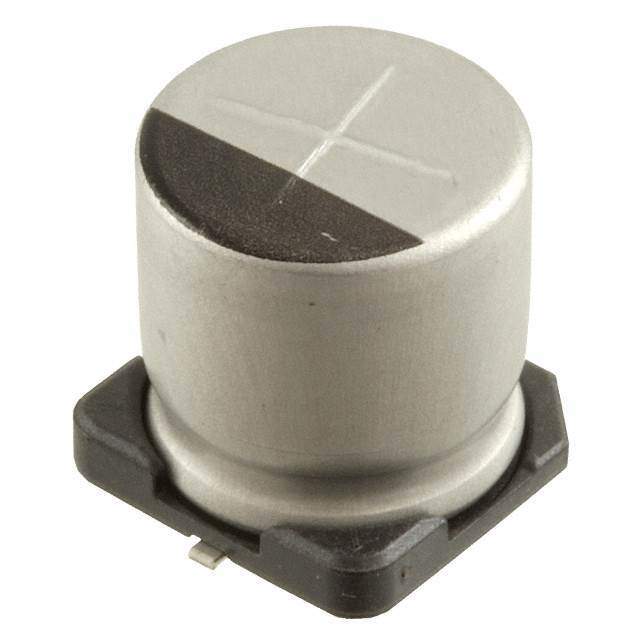

Same model may have multiple batches, images only for reference.

UCD1V331MNL1GS

Name: UCD1V331MNL1GS
Brand: Nichicon
SKU: 386571
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1V331MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 35V SMD
Datasheet	UCD1V331MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Reel - TR
Status	Active
Capacitance	330μF
Tolerance	±20%
Voltage Rating	35V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C to 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	425mA @ 120Hz
Ripple Current - High Frequency	850mA @ 100kHz
Impedance	80 mOhm
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	SMD (SMT)
Dimension	Radial, Can - SMD
Win Source Part Number	386571-UCD1V331MNL1GS
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UCD1V331MNL1GS CAD Model

Description

The UCD1V331MNL1GS is a 330μF, 35V, polarized aluminum electrolytic capacitor from Nichicon.

Type: Surface mount device (SMD)
Height: 0.413 inches (10.50mm)
Surface Mount Land Size: 0.406 inches x 0.406 inches (10.30mm x 10.30mm)
Tolerance: ±20%
Impedance: 80 mOhm
Application: General-purpose applications
Lifetime: 5000 hours @ 105°C
Ripple Current: 425mA @ 120Hz and 850mA @ 100kHz
Popularity: Common-used part with a high popularity.
