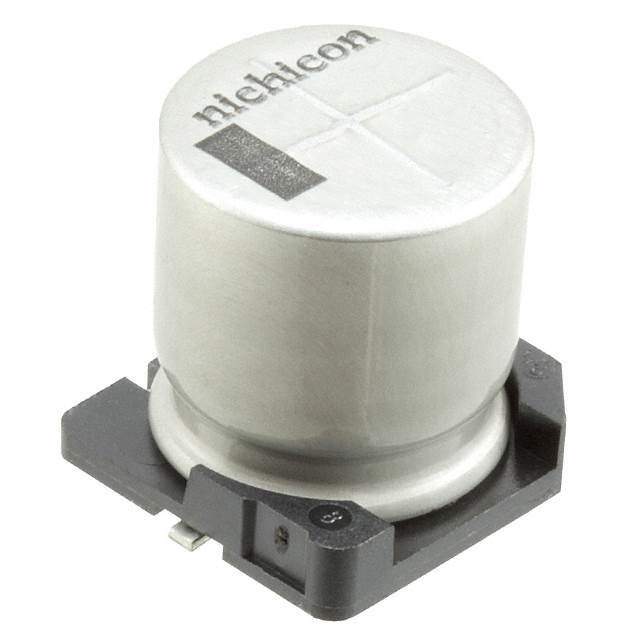

Same model may have multiple batches, images only for reference.

UCD1J221MNQ1MS

Name: UCD1J221MNQ1MS
Brand: Nichicon
SKU: 808249
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1J221MNQ1MS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 63V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Reel
Capacitance	220μF
Tolerance	±20%
Voltage - Rated	63V
Lifetime at Temp.	5000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	Automotive
Ripple Current at Low Frequency	400mA at 120Hz
Ripple Current at High Frequency	800mA at 100kHz
Impedance	160 mOhms
Dimension	0.492" Dia (12.50mm)
Height - Seated (Maximum)	0.571" (14.50mm)
Surface Mount Land Size	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	200
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	808250-UCD1J221MNQ1MS
Ultra Librarian 3D Model	Ultra Librarian UCD1J221MNQ1MS CAD Model

Description

The UCD1J221MNQ1MS is a capacitor manufactured by Nichicon.

Package: Reel
Mounting Style: SMD
Application: Automotive
Capacitance: 220μF
Tolerance: ±20%
Voltage Rating: 63V
Impedance: 160 mOhms
Polar: Yes
Surface Mount Land Size: 0.535" L x 0.535" W (13.60mm x 13.60mm)
Temperature Range: -55°C to 105°C
Dimension: 0.492" Dia (12.50mm)
Height: 0.571" (14.50mm)
Supply & Demand: Balanced
Manufacturer Pack Quantity: 200
MSL Level: 1 (Unlimited)
Lifetime @ Temp: 5000 Hrs @ 105°C
Ripple Current @ Low Frequency: 400mA @ 120Hz
Ripple Current @ High Frequency: 800mA @ 100kHz
