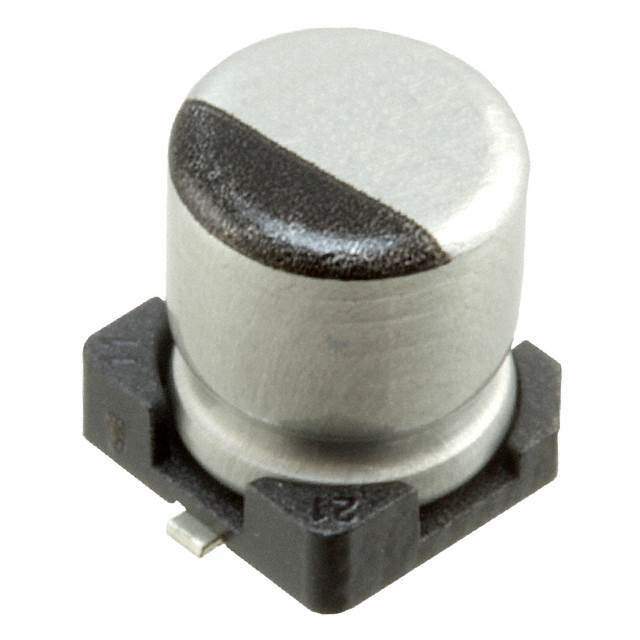

Same model may have multiple batches, images only for reference.

UCD1E330MCL6GS

Name: UCD1E330MCL6GS
Brand: Nichicon
SKU: 693911
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1E330MCL6GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	ALUMINUM ELECTROLYTIC CAPACITORS \| CAP ALUM 33UF 20% 25V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Reel
Capacitance	33μF
Tolerance	±20%
Voltage - Rated	25V
Lifetime at Temp.	2000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current at Low Frequency	80mA at 120Hz
Ripple Current at High Frequency	160mA at 100kHz
Impedance	700 mOhms
Parts Dimension	0.197" Dia
Height - Seated (Maximum)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1276599-UCD1E330MCL6GS
Manufacturer Homepage	www.nichicon-us.com
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian UCD1E330MCL6GS CAD Model

Description

The Nichicon UCD1E330MCL6GS capacitor is a high-performance component designed for use in various electronic applications. Bold text: UCD1E330MCL6GS from Nichicon.

Capacitance: 33µF
Voltage: 25V
Package: Reel
Lead Spacing: -
AEC-Q200: Yes
Popularity: Medium
Ripple Current (Low Frequency): 80mA @ 120Hz
Ripple Current (High Frequency): 160mA @ 100kHz
