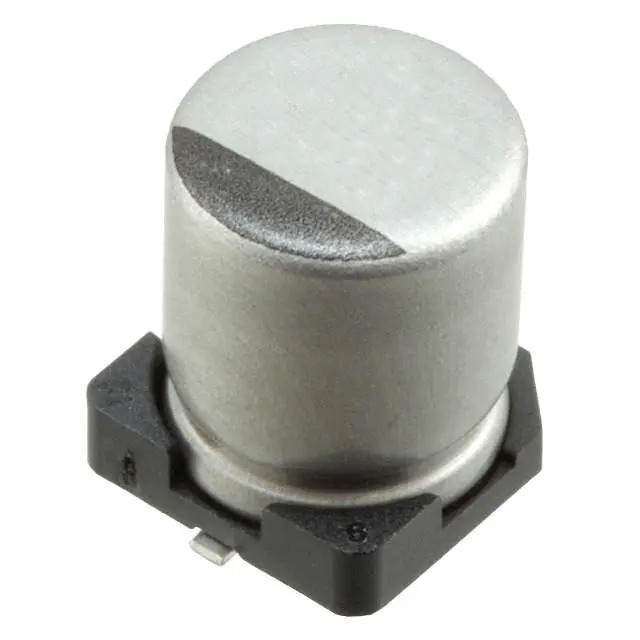

Same model may have multiple batches, images only for reference.
UCD1C151MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1C151MCL1GS

Part No UCD1C151MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 150UF 20% 16V SMD / 150 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1C151MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 145 mA @ 120 Hz
Ripple Current @ High Frequency 290 mA @ 100 kHz
Impedance 320 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360233-UCD1C151MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1C151MCL1GS CAD Model

Description

The UCD1C151MCL1GS is a surface mount aluminum electrolytic capacitor with a capacitance of 150 µF and a voltage rating of 16 V manufactured by Nichicon.

  • Series: UCD series
  • Application: Designed for automotive applications
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Diameter: 6.30mm
  • Height: 8.00mm
  • Feature: Low equivalent series resistance (ESR)
  • Ripple Current (Low Frequency): 145 mA @ 120 Hz
  • Ripple Current (High Frequency): 290 mA @ 100 kHz
  • Packaging: Available in a tape and reel package
  • Installation: For easy surface mount installation
  • Brand: Trusted brand known for its high-quality electronic components
