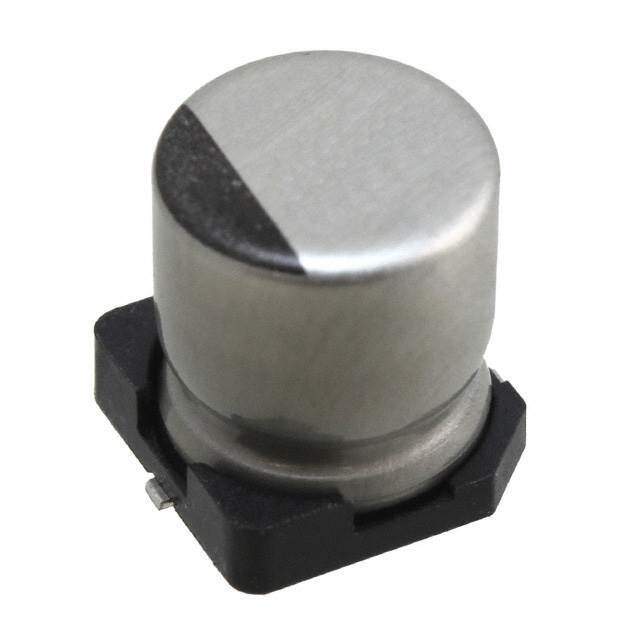

Same model may have multiple batches, images only for reference.

UCB1C470MCL1GS

Name: UCB1C470MCL1GS
Brand: Nichicon
SKU: 1352286
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCB1C470MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 16V SMD / 47 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Datasheet	UCB1C470MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCB
Package	Tape & Reel
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	50 mA @ 120 Hz
Ripple Current @ High Frequency	75 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1352286-UCB1C470MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCB1C470MCL1GS CAD Model

Description

The UCB1C470MCL1GS aluminum electrolytic capacitor is a part of the UCB series.

Capacitance: 47μF
Voltage - Rated: 16V
Tolerance: ±20%
Ripple Current @ Low Frequency: 50 mA @ 120 Hz
Ripple Current @ High Frequency: 75 mA @ 10 kHz
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Package / Case: Radial, Can - SMD
Operating Temperature: -25°C ~ 105°C
Series: UCB
Manufacturer: Nichicon
