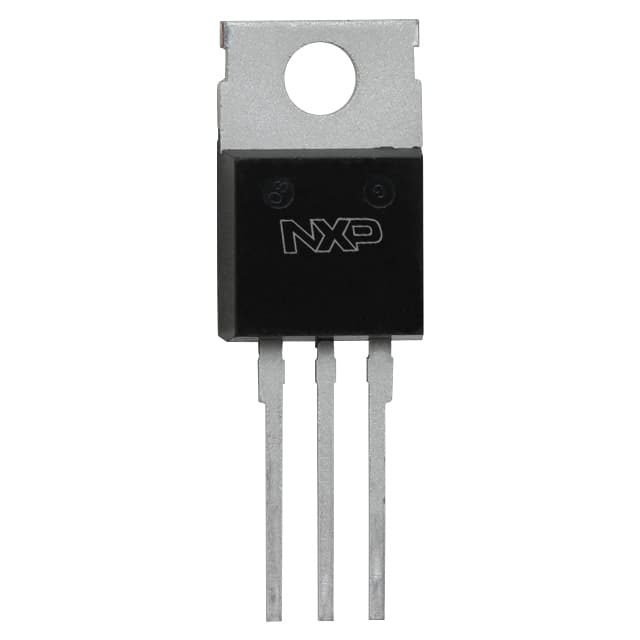

Same model may have multiple batches, images only for reference.
BTA316-600B0Q
Same model may have multiple batches, images only for reference.

BTA316-600B0Q

Part No BTA316-600B0Q
Manufacturer WeEn Semiconductors
Catalog Triacs
Description TRIAC 600V 16A TO220AB / TRIAC Standard 600 V 16 A Through Hole TO-220AB
Datasheet
BTA316-600B0Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - TRIACs
Mfr WeEn Semiconductors
Package Tube
Product Status Active
Triac Type Standard
Voltage - Off State 600 V
Current - On State (It (RMS)) (Max) 16 A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 140A, 150A
Current - Gate Trigger (Igt) (Max) 50 mA
Current - Hold (Ih) (Max) 60 mA
Configuration Single
Temperature Range - Operating 125°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number BTA316
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 864831-BTA316-600B0Q
Ultra Librarian 3D Model Ultra Librarian BTA316-600B0Q CAD Model

Description

The 864831-BTA316-600B0Q is a single thyristor with a voltage rating of 600 V and a maximum gate trigger voltage of 1.5V.

  • Maximum On-State Current: 16A
  • Non-Repetitive Surge Current: 140A
  • Application: High voltage switching capabilities
  • Package: TO-220-3
  • Mounting: Through hole
  • Series: Standard triac series
  • Package Quantity: 1,000 pcs
  • Operating Temperature: Up to 125°C
  • Manufacturer: WeEn Semiconductors
  • Status: Active product
