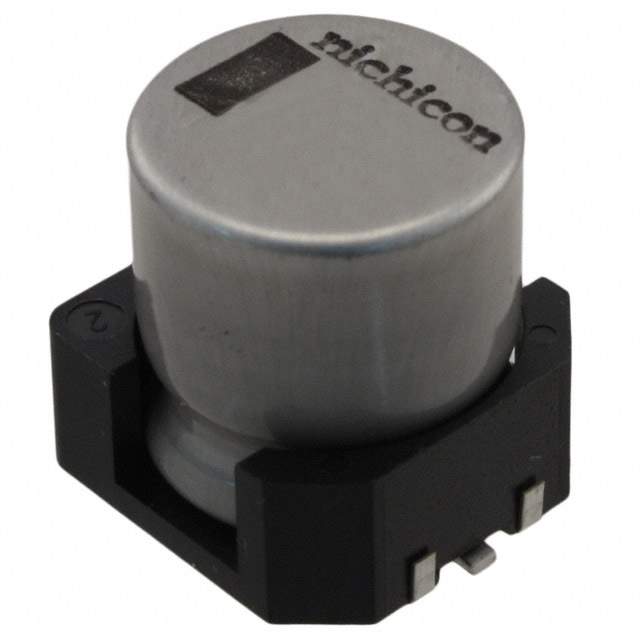

Same model may have multiple batches, images only for reference.

UBC1A102MNS1MS

Name: UBC1A102MNS1MS
Brand: Nichicon
SKU: 1340436
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UBC1A102MNS1MS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 10V SMD / 1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C
Datasheet	UBC1A102MNS1MS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UBC
Package	Tape & Reel
Product Status	Last Time Buy
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	1000 Hrs @ 150°C
Temperature Range - Operating	-55°C ~ 150°C
Polarization	Polar
Applications	Automotive
Ripple Current @ Low Frequency	603 mA @ 120 Hz
Ripple Current @ High Frequency	900 mA @ 100 kHz
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340436-UBC1A102MNS1MS
Ultra Librarian 3D Model	Ultra Librarian UBC1A102MNS1MS CAD Model

Description

The 1340436-UBC1A102MNS1MS is an aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 10 V.

Capacitance: 1000 µF
Voltage Rating: 10 V
Series: UBC
Application: Automotive
Packaging: Tape & Reel
Standard Package: 200
Type: Polarized
Package / Case: Radial, Can - SMD
Size: 0.492 inches Diameter
Seated Height: 0.571 inches
Tolerance: ±20%
Lifetime: 1000 Hours @ 150°C
Surface Mount Land Size: 0.535 inches Length, 0.535 inches Width
Ripple Current: 603 mA @ Low Frequency, 900 mA @ High Frequency
MSL Level: 1 (Unlimited)
REACH: Unaffected
