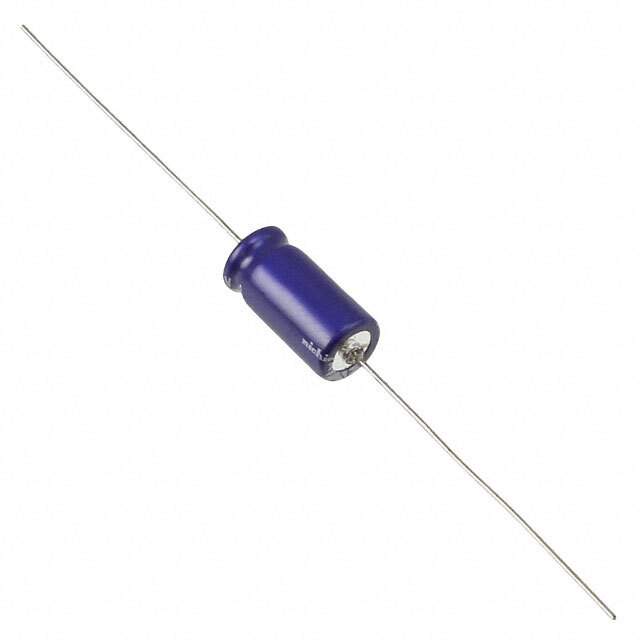

Same model may have multiple batches, images only for reference.

TVX1H101MAD

Get a Quote

Part No	TVX1H101MAD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V AXIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	TVX
Package	Bulk
Product Status	Obsolete
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Applications	General Purpose
Ripple Current @ Low Frequency	220 mA @ 120 Hz
Ripple Current @ High Frequency	330 mA @ 10 kHz
Size / Dimension	0.315" Dia x 0.669" L (8.00mm x 17.00mm)
Mounting Type	Through Hole
Package / Case	Axial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349774-TVX1H101MAD
Ultra Librarian 3D Model	Ultra Librarian TVX1H101MAD CAD Model

Description

The Nichicon TVX series is an aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 50 V.

Capacitance: 100 µF
Voltage Rating: 50 V
Tolerance: ±20%
Package: bulk
Size/Dimension: 0.315" Dia x 0.669" L (8.00mm x 17.00mm)
Type: general-purpose
Package/Case: axial, can
Temperature Range: -40°C ~ 85°C
Lifetime: 2000 Hrs @ 85°C
Win Source Part Number: 1349774-TVX1H101MAD
