Same model may have multiple batches, images only for reference.

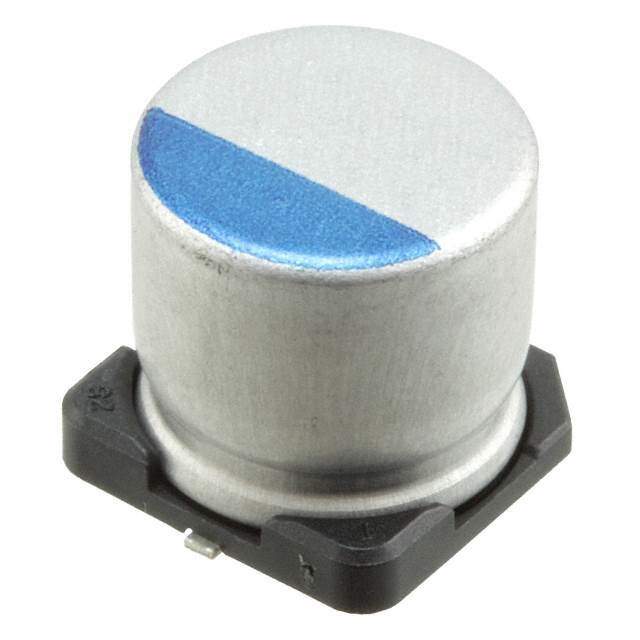

PCV1E181MCL1GS Real Image
Same model may have multiple batches, images only for reference.

PCV1E181MCL1GS

Part No PCV1E181MCL1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 25V SMD
Datasheet
PCV1E181MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series PCV
Packaging Reel package
Type Polymer
Capacitance 180μF
Tolerance ±20%
Voltage Rating 25V
ESR (Equivalent Series Resistance) 28 mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - High Frequency 2.3A @ 100kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 763641-PCV1E181MCL1GS
Popularity Medium
Supply and Demand Status Limited
Family Name CV
Introduction Date August 27, 2009
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PCV1E181MCL1GS CAD Model

Description

The Nichicon PCV series SMD capacitor has a capacitance of 180μF and a voltage rating of 25V.

  • Capacitance: 180μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • ESR: 28 mOhm
  • Ripple Current: 2.3A @ 100kHz
  • Lifetime: 3000 Hrs @ 105°C
  • Material: Polymer
  • Package: Radial, Can-SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height Seated: 0.394" (10.00mm)
  • Popularity: Medium
