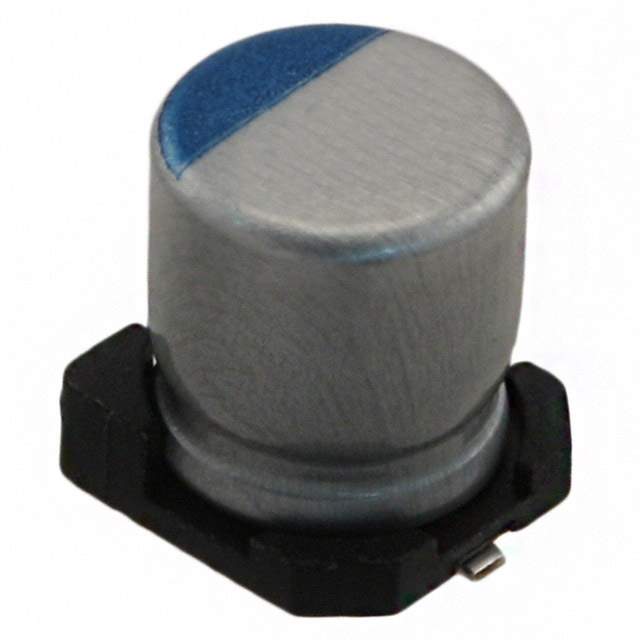

Same model may have multiple batches, images only for reference.

PCS1C220MCL1GS

Name: PCS1C220MCL1GS
Brand: Nichicon
SKU: 987984
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PCS1C220MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 22UF 20% 16V SMD / 22 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Nichicon
Series	PCS
Package	Tape & Reel
Type	Polymer
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	45mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	1.1 A @ 100 kHz
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-3979-6,493-3979-1,493-3979-2
Standard Package	1,000
Win Source Part Number	987984-PCS1C220MCL1GS
Ultra Librarian 3D Model	Ultra Librarian PCS1C220MCL1GS CAD Model

Description

The 987984-PCS1C220MCL1GS is a polymer capacitor from Nichicon's PCS series. This general-purpose capacitor has a capacitance of 22 µF, a voltage rating of 16 V, and a ±20% tolerance.

Capacitance: 22 µF
Voltage Rating: 16 V
Tolerance: ±20%
ESR: 45mOhm
Ripple Current: 1.1 A @ 100 kHz
Mounting: SMD (SMT)
Package: Radial, can - SMD
Height: 0.236" (6.00mm)
Surface-Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Operating Temperature Range: -55°C to 105°C
Lifetime: 5000 Hrs @ 105°C
