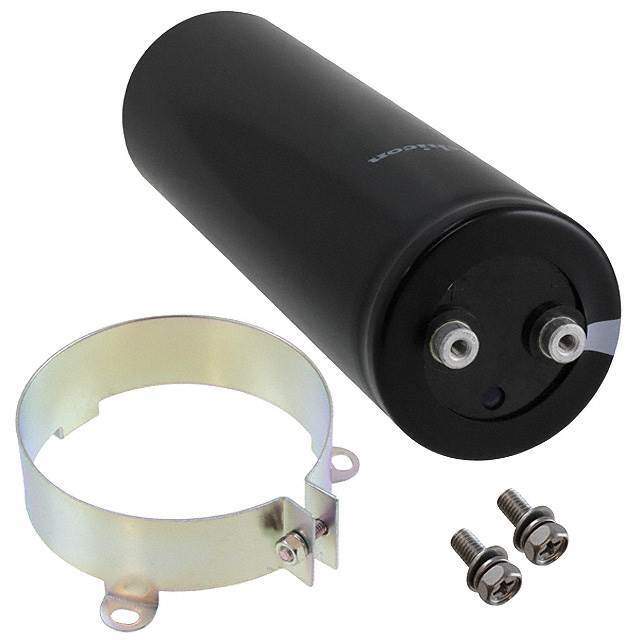

Same model may have multiple batches, images only for reference.

LNY2G822MSEG

Name: LNY2G822MSEG
Brand: Nichicon
SKU: 1340017
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LNY2G822MSEG
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 8200UF 20% 400V SCREW / 8200 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
Datasheet	LNY2G822MSEG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LNY
Package	Bulk
Capacitance	8200 µF
Tolerance	±20%
Voltage - Rated	400 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	21.2 A @ 120 Hz
Ripple Current @ High Frequency	29.68 A @ 10 kHz
Lead Spacing	1.126" (28.60mm)
Size / Dimension	2.500" Dia (63.50mm)
Height - Seated (Max)	8.268" (210.00mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0085
Win Source Part Number	1340017-LNY2G822MSEG
Ultra Librarian 3D Model	Ultra Librarian LNY2G822MSEG CAD Model

Description

The Nichicon LNY series aluminum electrolytic capacitor is designed for general-purpose applications.

Capacitance: 8200 µF
Voltage - Rated: 400 V
Polarization: Polar
Package / Case: Radial, Can - Screw Terminals
Ripple Current @ Low Frequency: 21.2 A
Ripple Current @ High Frequency: 29.68 A
ESR (Equivalent Series Resistance): Not Specified
Lifetime @ Temp.: 2000 Hrs @ 85°C
Size / Dimension: 2.500" Dia (63.50mm)
Height - Seated (Max): 8.268" (210.00mm)
Lead Spacing: 1.126" (28.60mm)
Mounting Type: Chassis Mount
Operating Temperature: -40°C to 85°C
Manufacturer: Nichicon
