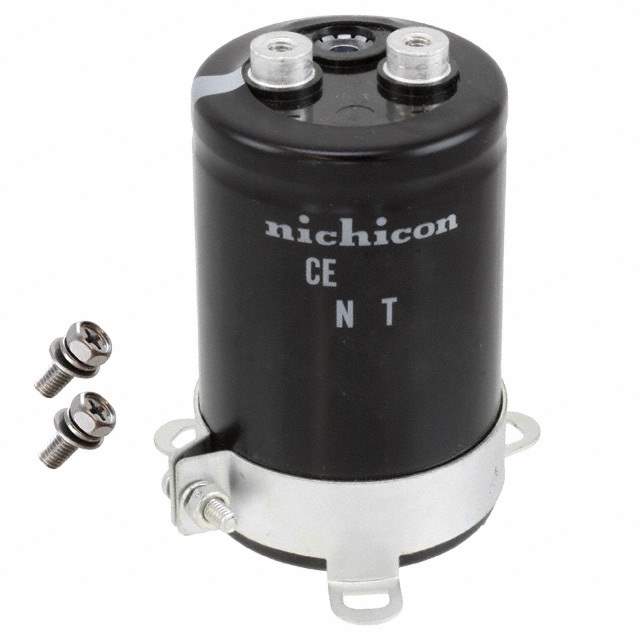

Same model may have multiple batches, images only for reference.

LNT1H223MSE

Name: LNT1H223MSE
Brand: Nichicon
SKU: 1339991
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LNT1H223MSE
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22000UF 20% 50V SCREW / 22000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 105°C
Datasheet	LNT1H223MSE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LNT
Package	Bulk
Capacitance	22000 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	6.3 A @ 120 Hz
Ripple Current @ High Frequency	7.245 A @ 10 kHz
Lead Spacing	0.866" (22.00mm)
Size / Dimension	2.008" Dia (51.00mm)
Height - Seated (Max)	3.268" (83.00mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
Standard Package	5
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0055
Win Source Part Number	1339991-LNT1H223MSE
Ultra Librarian 3D Model	Ultra Librarian LNT1H223MSE CAD Model

Description

The LNT series from Nichicon is a 50V rated aluminum electrolytic capacitor with a capacitance of 22000μF and a ±20% tolerance.

Voltage Rating: 50V
Capacitance: 22000μF
Tolerance: ±20%
Ripple Current - Low Frequency: 6.3A
Ripple Current - High Frequency: 7.245A
Polarization: Polarized
Mounting Type: Chassis Mount
Package / Case: Radial, Can - Screw Terminals
Operating Temperature: -40°C ~ 105°C
