Same model may have multiple batches, images only for reference.

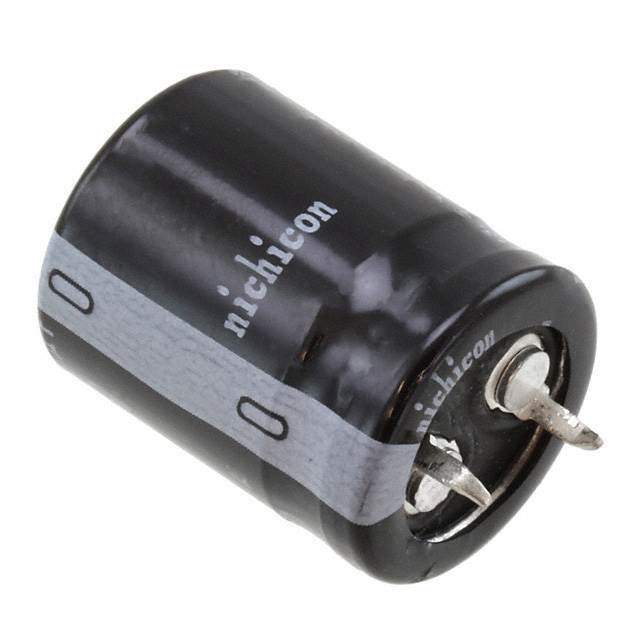

LLS2G680MELY Real Image
Same model may have multiple batches, images only for reference.

LLS2G680MELY

Part No LLS2G680MELY
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 400V SNAP / 68 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet
LLS2G680MELY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLS
Package Bulk
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 750 mA @ 120 Hz
Ripple Current @ High Frequency 1.0725 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1337335-LLS2G680MELY
Ultra Librarian 3D Model Ultra Librarian LLS2G680MELY CAD Model

Description

The LLS2G680MELY is an aluminum electrolytic capacitor from Nichicon's LLS series.

  • Capacitance: 68 µF
  • Tolerance: ±20%
  • Voltage - Rated: 400 V
  • ESR (Equivalent Series Resistance): -
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Termination: Radial, Can - Snap-In
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can - Snap-In
  • Size / Dimension: 0.787" Dia (20.00mm)
  • Height - Seated (Max): 0.984" (25.00mm)
  • Ripple Current @ Low Frequency: 690 mA @ 120 Hz
  • Polarization: Polar
  • Lead Spacing: 0.394" (10.00mm)
