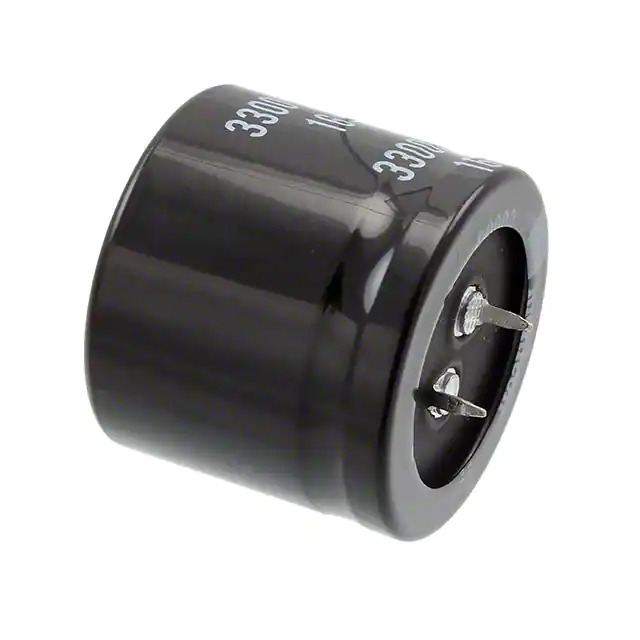

Same model may have multiple batches, images only for reference.

LLS1K472MELC

Name: LLS1K472MELC
Brand: Nichicon
SKU: 1360759
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LLS1K472MELC
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4700UF 20% 80V SNAP / 4700 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet	LLS1K472MELC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLS
Package	Bulk
Product Status	Active
Capacitance	4700 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	4.12 A @ 120 Hz
Ripple Current @ High Frequency	4.738 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360759-LLS1K472MELC
Ultra Librarian 3D Model	Ultra Librarian LLS1K472MELC CAD Model

Description

The LLS1K472MELC is a radial, can - snap-in aluminum electrolytic capacitor from Nichicon.

Capacitance: 4700 µF
Voltage Rating: 80 V
Application: General Purpose
Operating Temperature: -40°C to 85°C
Tolerance: ±20%
Ripple Current @ 120 Hz: 4.12 A
Ripple Current @ 50 kHz: 4.738 A
Series: LLS
Lead Spacing: 0.394" (10.00mm)
Size: 1.378" Dia (35.00mm)
Height (Max): 1.260" (32.00mm)
Mounting Type: Through Hole
Packaging: Bulk
Lifetime @ 85°C: 3000 hours
Product Status: Active
REACH: Unaffected
