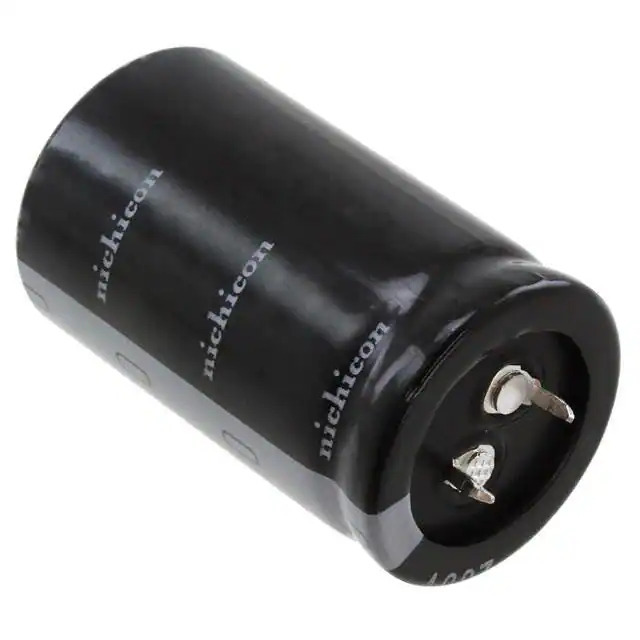

Same model may have multiple batches, images only for reference.

LLG2D222MELB50

Name: LLG2D222MELB50
Brand: Nichicon
SKU: 1360710
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LLG2D222MELB50
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 200V SNAP / 2200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Datasheet	LLG2D222MELB50 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLG
Package	Bulk
Product Status	Active
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	4.18 A @ 120 Hz
Ripple Current @ High Frequency	6.27 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360710-LLG2D222MELB50
Ultra Librarian 3D Model	Ultra Librarian LLG2D222MELB50 CAD Model

Description

The 1360710-LLG2D222MELB50 is an aluminum electrolytic capacitor manufactured by Nichicon.

Series: LLG
Application: General Purpose
Capacitance: 2200 μF
Voltage Rating: 200 V
Tolerance: ±20%
ESR: Not specified
Operating Temperature: -40°C to 85°C
Lifetime: 2000 hours @ 85°C
Mounting Type: Through Hole
Package: Radial, Can - Snap-In
Size: 1.181" diameter (30.00mm)
Height (Max): 2.047" (52.00mm)
REACH: Compliant
Application: General Purpose
