Same model may have multiple batches, images only for reference.

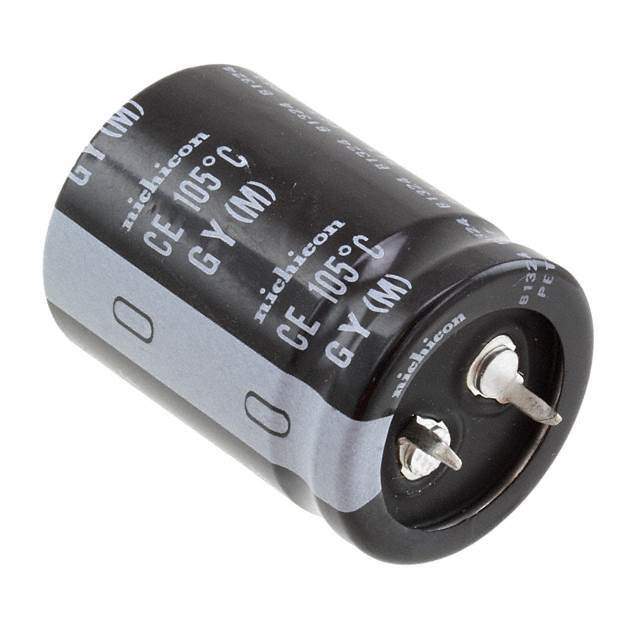

LGY1K222MELA35 Real Image
Same model may have multiple batches, images only for reference.

LGY1K222MELA35

Part No LGY1K222MELA35
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 80V SNAP / 2200 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Datasheet
LGY1K222MELA35 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGY
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 80 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2 A @ 120 Hz
Ripple Current @ High Frequency 2.3 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1338421-LGY1K222MELA35
Ultra Librarian 3D Model Ultra Librarian LGY1K222MELA35 CAD Model

Description

The Nichicon LGY1K222MELA35 is an aluminum electrolytic capacitor with a capacitance of 2200 µF and a voltage rating of 80 V.

  • Capacitance: 2200 µF
  • Voltage Rating: 80 V
  • Series: LGY
  • Category: Capacitors - Aluminum Electrolytic Capacitors
  • Application: General Purpose
  • Height Seated: 1.457" (37.00mm)
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • Ripple Current (Low Frequency): 2 A @ 120 Hz
  • Ripple Current (High Frequency): 2.3 A @ 50 kHz
