Same model may have multiple batches, images only for reference.

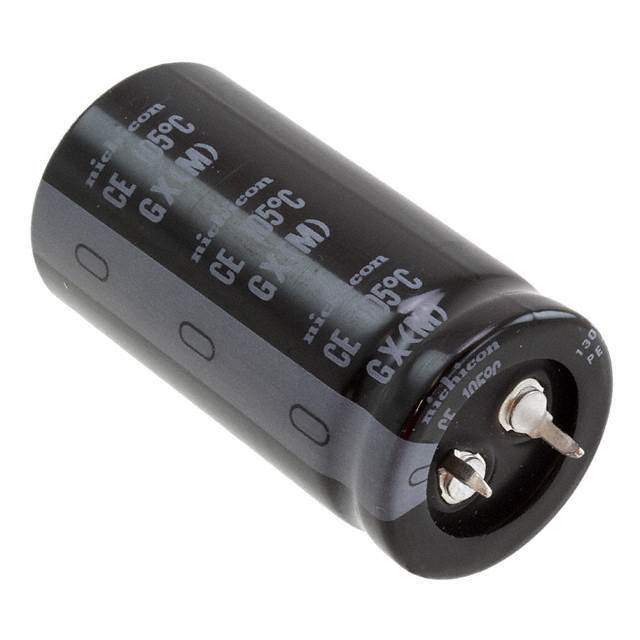

LGX2H181MELA50 Real Image
Same model may have multiple batches, images only for reference.

LGX2H181MELA50

Part No LGX2H181MELA50
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 180UF 20% 500V SNAP / 180 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGX
Package Bulk
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 500 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 1.716 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 493-6756
Standard Package 250
Win Source Part Number 996637-LGX2H181MELA50
Ultra Librarian 3D Model Ultra Librarian LGX2H181MELA50 CAD Model

Description

The Nichicon LGX2H181MELA50 Capacitor is an aluminum electrolytic capacitor with a capacitance of 180μF and a voltage rating of 500V. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Capacitance: 180μF
  • Voltage Rating: 500V
  • Series: LGX
  • Operating Temperature Range: -25°C to 105°C
  • Packaging: Radial, Can - Snap-In
  • Available Packaging: Bulk
  • Mounting: Through-Hole
  • Height Seated: 2.047" (52.00mm)
  • Standard Package: 250
  • Tolerance: ±20%
  • Lifetime: 5000 Hrs @ 105°C
  • Polarized: Yes
  • Dimension: 0.984" Dia (25.00mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.22.0040
  • Manufacturer: Nichicon
  • Ripple Current @ Low Frequency: 1.2 A @ 120 Hz
  • Ripple Current @ High Frequency: 1.716 A @ 50 kHz
