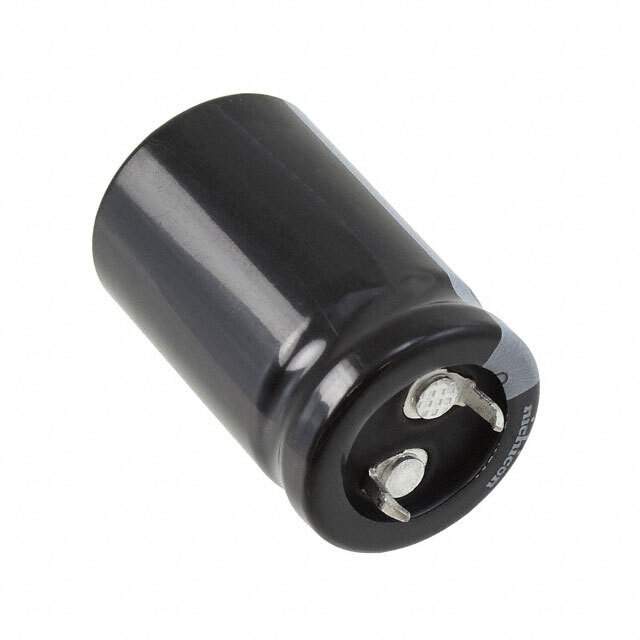

Same model may have multiple batches, images only for reference.

LGU2W101MELZ

Name: LGU2W101MELZ
Brand: Nichicon
SKU: 1166650
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LGU2W101MELZ
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 450V SNAP / 100 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGU
Package	Bulk
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	690 mA @ 120 Hz
Ripple Current @ High Frequency	986.7 mA @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.378" (35.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Other Names	493-2849
Standard Package	250
Win Source Part Number	1166650-LGU2W101MELZ
Ultra Librarian 3D Model	Ultra Librarian LGU2W101MELZ CAD Model

Description

The Nichicon LGU2W101MELZ is a radial, can-snap-in aluminum electrolytic capacitor that is designed for use in general purpose applications.

Capacitance: 100µF
Voltage Rating: 450V
Applications: Power supplies, audio amplifiers, and other applications requiring high capacitance and voltage ratings
Tolerance: ±20%
Lifetime: 3000 hours @ 105°C
Supply and Demand Status: Stable
