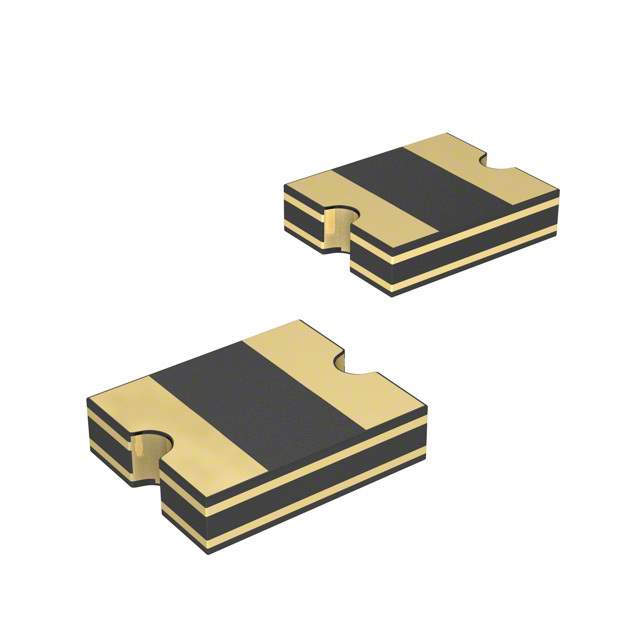

MF-USMF110-2 Real Image
Same model may have multiple batches, images only for reference.

MF-USMF110-2

Part No MF-USMF110-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 1.10A 6V HLD SMD
Datasheet
MF-USMF110-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 1.1A
Current - Trip (It) 2.2A
Time to Trip 1s
Resistance - Initial (Ri) (Min) 50 mOhm
Resistance - Post Trip (R1) (Max) 210 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003467-MF-USMF110-2
Ultra Librarian 3D Model Ultra Librarian MF-USMF110-2 CAD Model

Description

The Bourns Inc. polymeric circuit protection device is a reliable and efficient solution for safeguarding your electronic components.

  • Type: Polymeric
  • Mounting: Surface Mount Device
  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Thickness: 0.033 inches
  • Dimension: 0.127 inches in length and 0.102 inches in width
  • Rating: AEC-Q200
  • Approvals: cURus and TUV
  • Current Hold (Ih): 1.1A
  • Current Trip (It): 2.2A
  • Time to Trip: 1s
  • Initial Resistance (Ri): 50 mOhm
  • Post-Trip Resistance (R1): 210 mOhm
  • Temperature Range: -40°C to 85°C
  • Application: Circuit protection applications
