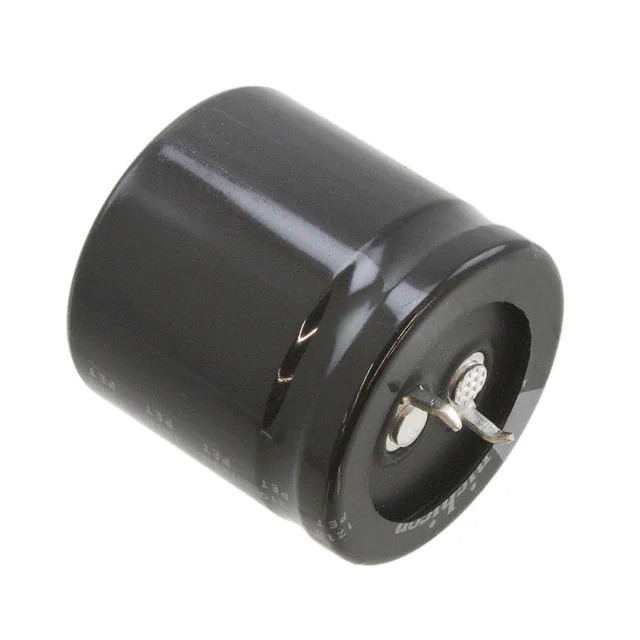

Same model may have multiple batches, images only for reference.

LGU2E471MELB

Name: LGU2E471MELB
Brand: Nichicon
SKU: 1360675
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LGU2E471MELB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 250V SNAP / 470 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGU2E471MELB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGU
Package	Bulk
Product Status	Active
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	250 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.65 A @ 120 Hz
Ripple Current @ High Frequency	2.475 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.181" (30.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360675-LGU2E471MELB
Ultra Librarian 3D Model	Ultra Librarian LGU2E471MELB CAD Model

Description

The LGU series aluminum electrolytic capacitor from Nichicon is a snap-in type component with a capacitance of 470 μF and a voltage rating of 250 V.

Application: General Purpose
Operating Temperature: -40°C to 105°C
Capacitance: 470 μF
Voltage Rating: 250 V
Diameter: 1.181" (30.00mm)
Seated Height: 1.181" (30.00mm)
Ripple Current (Low Frequency): 1.65 A @ 120 Hz
Ripple Current (High Frequency): 2.475 A @ 50 kHz
Lifetime: 3000 hours @ 105°C
RoHS Compliant: Yes
REACH Status: Unaffected
