Same model may have multiple batches, images only for reference.

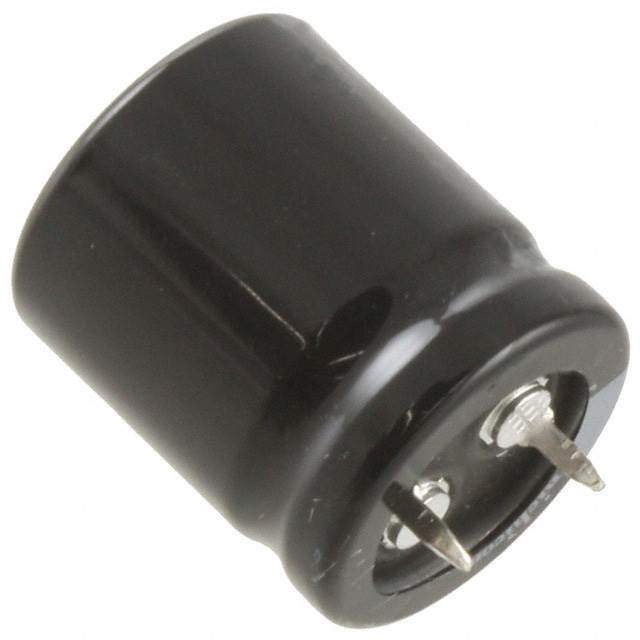

LGU2D391MELA Real Image
Same model may have multiple batches, images only for reference.

LGU2D391MELA

Part No LGU2D391MELA
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 390UF 20% 200V SNAP / Cap Aluminum Lytic 390uF 200V 20% (25 X 25mm) Snap-In 10mm 1350mA 3000h 105°C Bulk
Datasheet
LGU2D391MELA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series LGU
Packaging Bulk
Capacitance 390μF
Tolerance ±20%
Voltage Rating DC 200V
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 1.35A @ 120Hz
Ripple Current - High Frequency 2.025A @ 50kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Maximum) 0.984" (25.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 778589-LGU2D391MELA
Popularity Medium
Supply and Demand Status Limited
Family Name GU
Introduction Date September 19, 2003
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LGU2D391MELA CAD Model

Description

The Nichicon LGU2D391MELA is a capacitor suitable for general applications.

  • Win Source Part Number: 778589-LGU2D391MELA
  • Series: LGU
  • Mounting: Through Hole
  • Operating Temperature Range: -40°C to 105°C
  • Package: Radial, Can - Snap-In
  • Capacitance: 390μF
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • Lifetime @ Temperature: 3000 Hrs @ 105°C
  • Polarization: Polar
  • Family Name: GU
  • Dimension: 0.984" Dia (25.00mm)
  • Ripple Current: 1.35A @ 120Hz, 2.025A @ 50kHz
  • Height: 0.984" (25.00mm)
  • Voltage Rating DC: 200V
  • Alternative Parts: EETUQ2D391HJ, EETUQ2D391H, ESMQ201VSN391MP25S, NRLRW391M200V22X30SF
  • Introduction Date: September 19, 2003
  • EOL Date: 2027
  • ECCN: EAR99
  • Manufactured In: China, Japan, Malaysia
  • Supply and Demand Status: Limited
