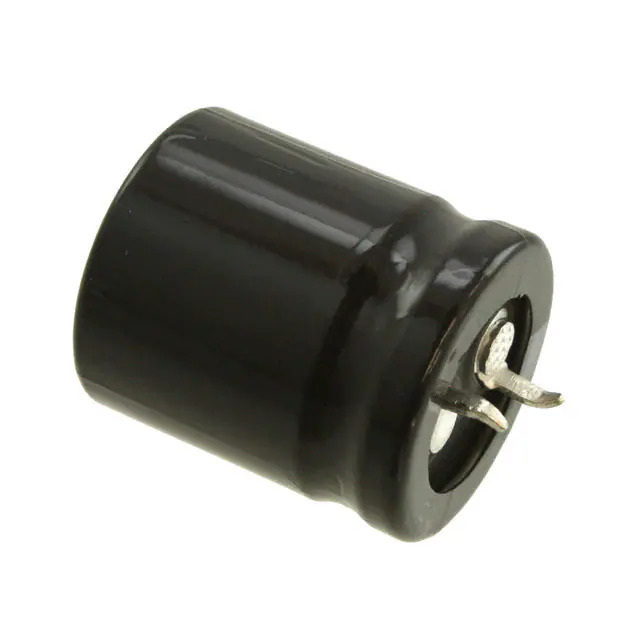

Same model may have multiple batches, images only for reference.
LGU1E472MELZ Nichicon
Same model may have multiple batches, images only for reference.

LGU1E472MELZ

Part No LGU1E472MELZ
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 25V SNAP / 4700 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGU1E472MELZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGU
Package Bulk
Product Status Active
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.61 A @ 120 Hz
Ripple Current @ High Frequency 1.8515 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360697-LGU1E472MELZ
Ultra Librarian 3D Model Ultra Librarian LGU1E472MELZ CAD Model

Description

The LGU1E472MELZ is an aluminum electrolytic capacitor from Nichicon's LGU series.

  • Series: LGU
  • Capacitance: 4700 μF
  • Voltage Rating: 25 V
  • Ripple Current: 1.61 A @ 120 Hz, 1.8515 A @ 50 kHz
  • Applications: General Purpose
  • Mounting Type: Through Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size / Dimension: 0.866" Dia (22.00mm)
  • Height - Seated (Max): 1.063" (27.00mm)
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Status: Active
