Same model may have multiple batches, images only for reference.

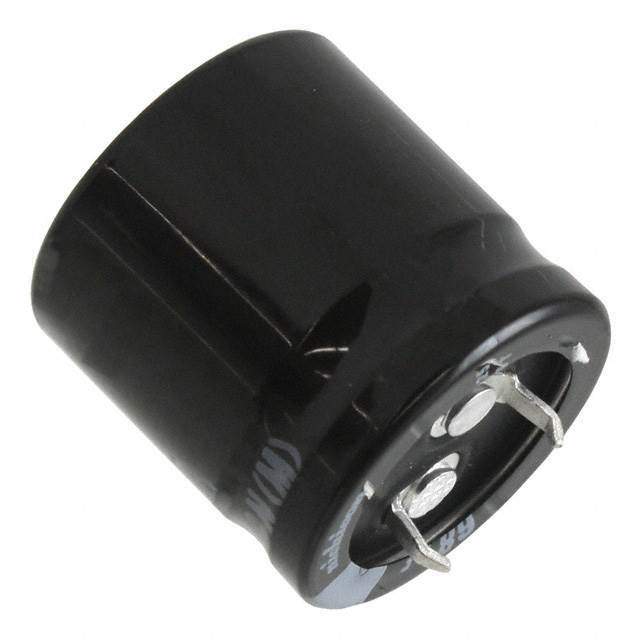

LGN2E331MELA25 Real Image
Same model may have multiple batches, images only for reference.

LGN2E331MELA25

Part No LGN2E331MELA25
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 250V SNAP / 330 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGN2E331MELA25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGN
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 250 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 1.8 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 493-7091,LGN2E331MELA25-ND
Standard Package 250
Win Source Part Number 1006794-LGN2E331MELA25
Ultra Librarian 3D Model Ultra Librarian LGN2E331MELA25 CAD Model

Description

The Nichicon LGN2E331MELA25 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Series: LGN
  • Capacitance: 330 µF
  • Voltage Rating: 250 V
  • Mounting Type: through-hole
  • Package: radial, can-snap-in
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • Manufacturer: Nichicon
  • Features: high performance and reliability
