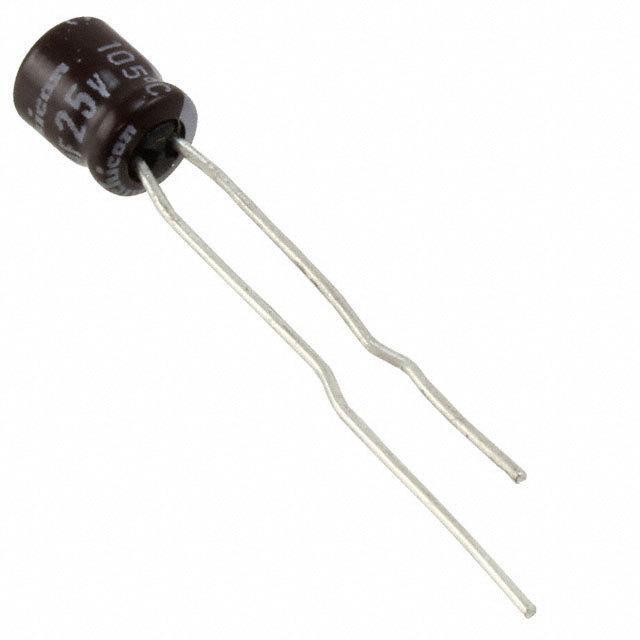

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Bulk
Status Active
Capacitance 10μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 25mA @ 120Hz
Ripple Current - High Frequency 50mA @ 100kHz
Impedance 5 Ohm
Lead Spacing 0.059" (1.50mm)
Height - Seated (Max) 0.236" (6.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 261510-F1C100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian F1C100 CAD Model

Description

Resistor F1C100

The F1C100 resistor is an essential component for precise current control and voltage division across a range of electronic devices. Its robust construction and precise specifications make it suitable for demanding environments.

Features and Benefits:

  • High stability and precision
  • Wide resistance range available
  • Excellent temperature coefficient
  • Durable under high load conditions

Applications:

  • Voltage regulation circuits
  • Signal conditioning
  • Current limiting applications
  • Load testing in systems

Choose the F1C100 resistor for unmatched reliability and performance in your electronic projects.
