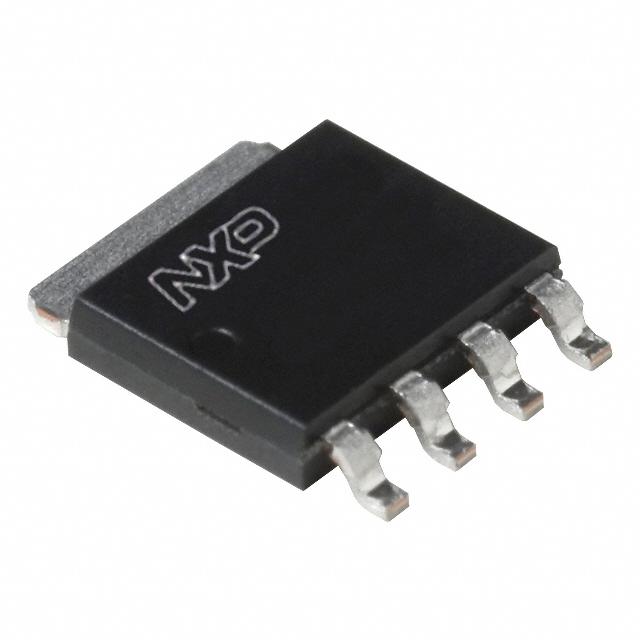

PSMN9R5-30YLC,115

Name: PSMN9R5-30YLC,115
Brand: Nexperia USA Inc.
SKU: 506958
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PSMN9R5-30YLC,115
Manufacturer	Nexperia USA Inc.
Catalog	TRANSISTORS
Description	MOSFETs NextPower 100 V, 10.2 mOhm N-channel MOSFET in LFPAK56 package
Datasheet	PSMN9R5-30YLC,115 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nexperia
Technology	Si
Mounting Style	SMD/SMT
Package / Case	SOT-669-5
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds - Drain-Source Breakdown Voltage	30 V
Id - Continuous Drain Current	44 A
Rds On - Drain-Source Resistance	9.8 mOhms
Vgs - Gate-Source Voltage	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage	1.05 V
Qg - Gate Charge	10.4 nC
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 175 C
Pd - Power Dissipation	34 W
Channel Mode	Enhancement
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Brand	Nexperia
Product Type	MOSFETs
Standard Pack Qty	1500
Subcategory	Transistors
Ultra Librarian 3D Model	Ultra Librarian PSMN9R5-30YLC,115 CAD Model

Alternative Products

Description

The Nexperia USA Inc. PSMN9R5-30YLC,115 is an N-channel MOSFET from Nexperia USA Inc.

Drain-Source Breakdown Voltage: 30 V
Continuous Drain Current: 44 A @ 25 °C
Gate-Source Threshold Voltage: 1.95 V @ 1 mA
Maximum Rds On: 9.8 mOhm @ 15 A and 10 V
Operating Temperature: -55 °C to 175 °C
RoHS Compliant: Yes
Package: LFPAK56
Supply and Demand Status: Balance
