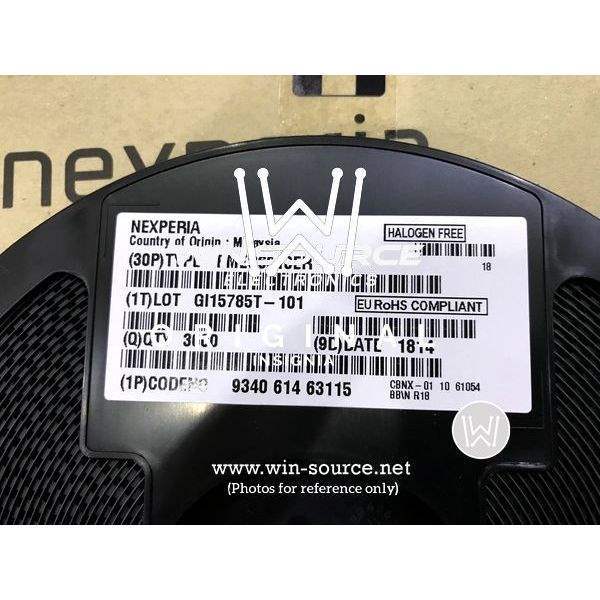

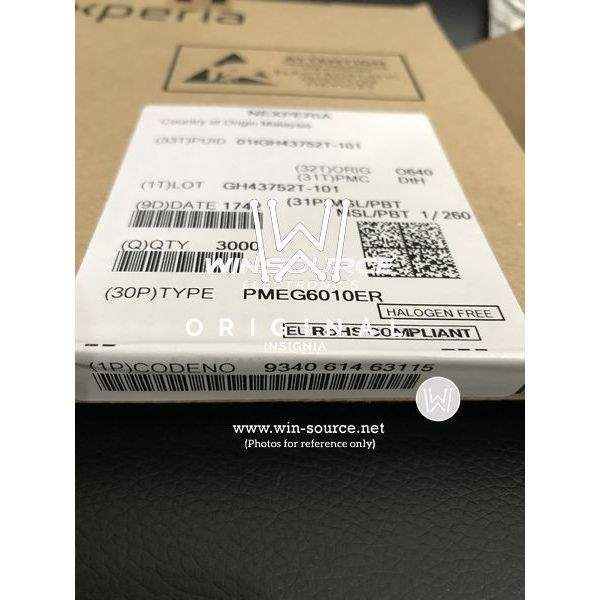

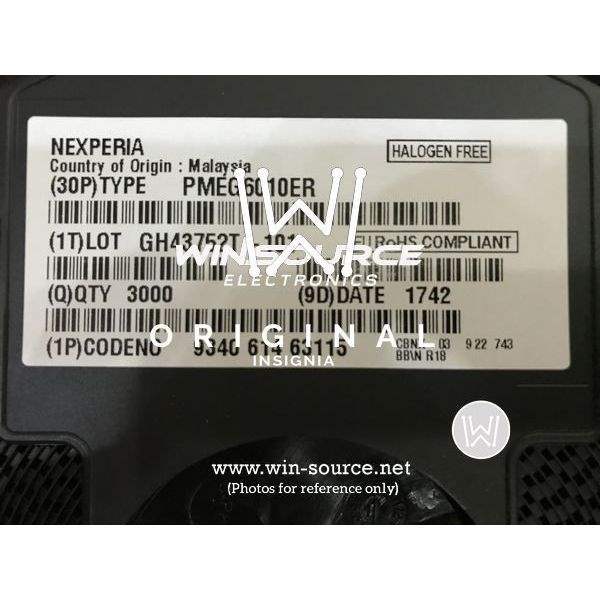

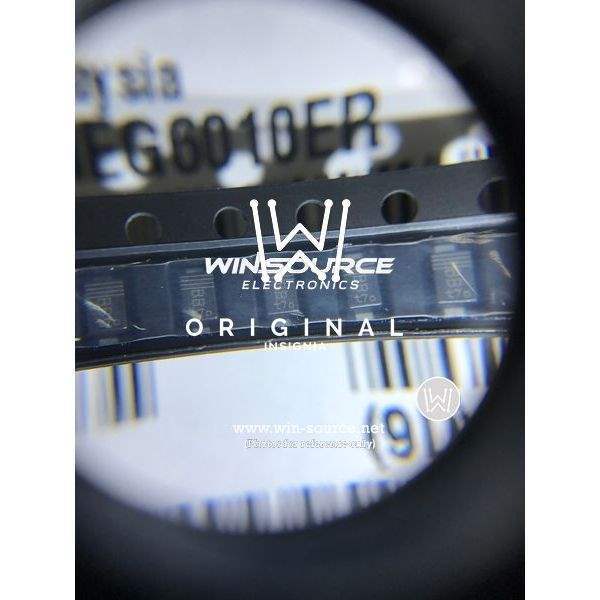

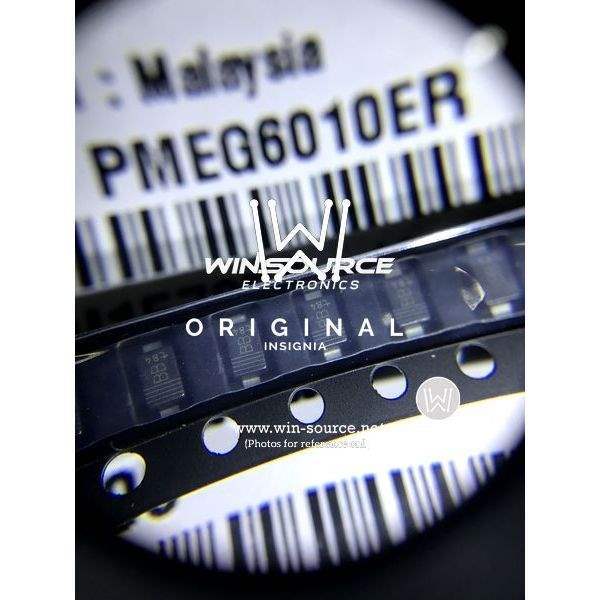

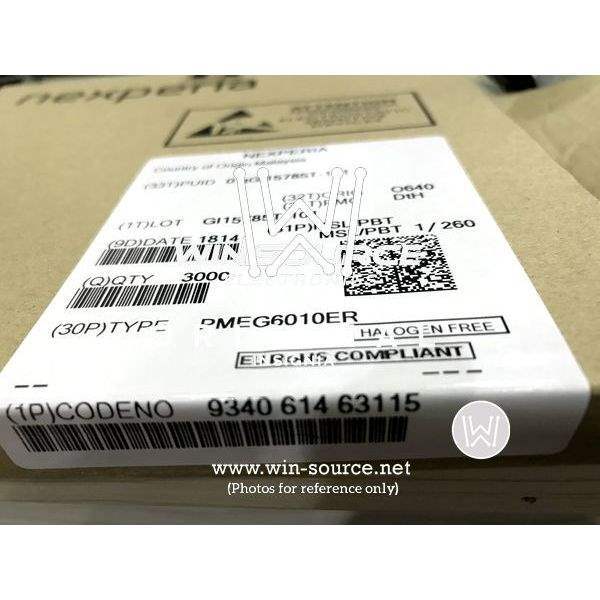

PMEG6010ER,115 Nexperia USA Inc. PMEG6010ER,115 label picture PMEG6010ER,115 label picture 2 PMEG6010ER,115 label picture 3 PMEG6010ER,115 label picture 4 PMEG6010ER,115 real image PMEG6010ER,115 real image 2
Same model may have multiple batches, images only for reference.
PMEG6010ER,115 Nexperia USA Inc. PMEG6010ER,115 label picture PMEG6010ER,115 label picture 2 PMEG6010ER,115 label picture 3 PMEG6010ER,115 label picture 4 PMEG6010ER,115 real image PMEG6010ER,115 real image 2
PMEG6010ER,115 Nexperia USA Inc. PMEG6010ER,115 label picture PMEG6010ER,115 label picture 2 PMEG6010ER,115 label picture 3 PMEG6010ER,115 label picture 4 PMEG6010ER,115 real image PMEG6010ER,115 real image 2
Same model may have multiple batches, images only for reference.

PMEG6010ER,115

Part No PMEG6010ER,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Schottky Diodes & Rectifiers 60 V, 1 A low VF Schottky barrier rectifier
Datasheet
PMEG6010ER,115 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 530mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 60μA @ 60V
Capacitance @ Vr, F 120pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package CFP3
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089643-PMEG6010ER,115
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMEG6010ER,115 CAD Model

Description

The PMEG6010ER,115 is a Schottky diode manufactured by Nexperia USA Inc.

  • Supply and Demand Status: Sufficient
  • Mounting: SMD (SMT)
  • Package: CFP3
  • Maximum DC Reverse Voltage: 60V
  • Average Rectified Current: 1A
  • Forward Voltage: 530mV @ 1A
  • Reverse Leakage: 60μA @ 60V
  • Capacitance: 120pF @ 1V, 1MHz
  • Operating Temperature (Junction): Maximum of 150 degrees Celsius
  • Speed (Frequency): 200mA (Io)
