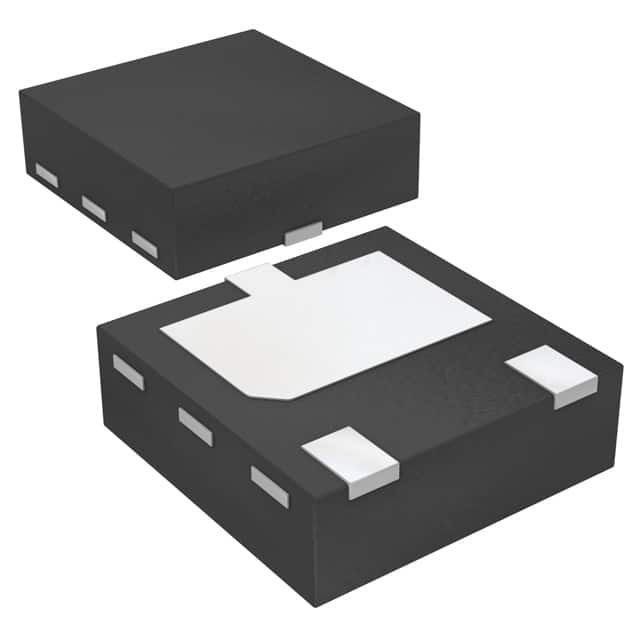

PMEG3020CPA,115 NXP
Same model may have multiple batches, images only for reference.

PMEG3020CPA,115

Part No PMEG3020CPA,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V 3HUSON
Datasheet
PMEG3020CPA,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Nexperia USA Inc.
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 2A
Voltage - Forward (Vf) (Max) @ If 440 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 2 mA @ 30 V
Operating Temperature - Junction 150°C (Max)
Mounting Type Surface Mount
Package / Case 3-PowerUDFN
Supplier Device Package 3-HUSON (2x2)
Base Product Number PMEG3020
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1085667-PMEG3020CPA,115
Ultra Librarian 3D Model Ultra Librarian PMEG3020CPA,115 CAD Model

Description

The PMEG3020CPA,115 is a fast recovery Schottky diode array with a voltage rating of 30V.

  • Voltage Rating: 30V
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current: 2A per diode
  • Reverse Recovery Time: 50ns
  • Forward Voltage: 440mV @ 2A
  • Mounting Type: Surface Mount
  • Package: 3-PowerUDFN
  • Maximum Operating Temperature: 150°C
  • Manufacturer: Nexperia USA Inc.
  • Status: Active
