Same model may have multiple batches, images only for reference.

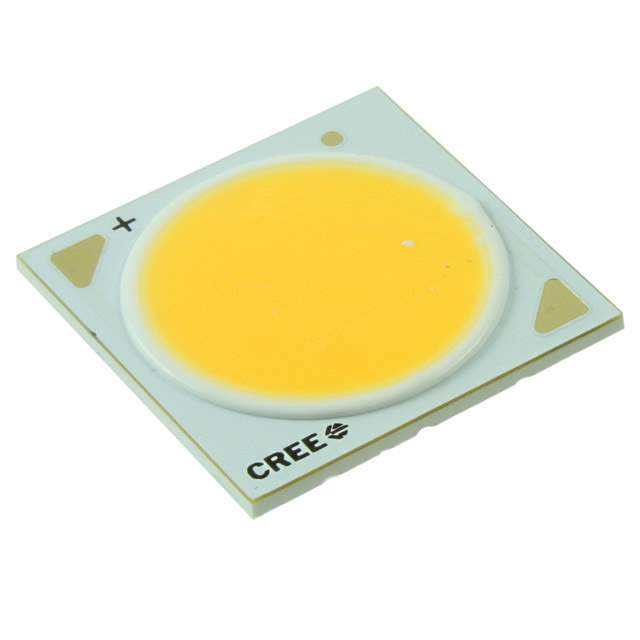

CXA2520-0000-000N00Q450F Real Image
Same model may have multiple batches, images only for reference.

CXA2520-0000-000N00Q450F

Part No CXA2520-0000-000N00Q450F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description Cree® XLamp® CXA2520 LED
Datasheet
CXA2520-0000-000N00Q450F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2520
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2340 lm (2260 lm ~ 2420 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 118 lm/W
Current - Max 1.25A
CRI (Color Rendering Index) 70
Viewing Angle 115°
Size 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 1163802-CXA2520-0000-000N00Q450F
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXA2520
Introduction Date September 17, 2012
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian CXA2520-0000-000N00Q450F CAD Model

Description

The Cree Inc. CXA2520-0000-000N00Q450F is a chip on board (COB) LED that comes in tray packaging.

  • Series: XLamp CXA2520 series
  • Maximum Current: 1.25A
  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Forward Voltage: 36V
  • Color Temperature: Cool white 5000K, which is a 4-step MacAdam ellipse
  • Flux @ 85°C: 2260 lm to 2420 lm @ 550mA
  • CRI: 70
  • Thermal Resistance: 11°C/W
  • Category: Optoelectronics
