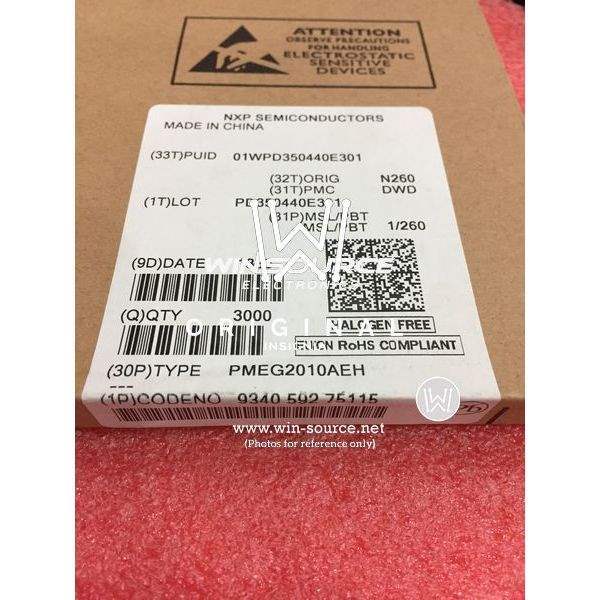

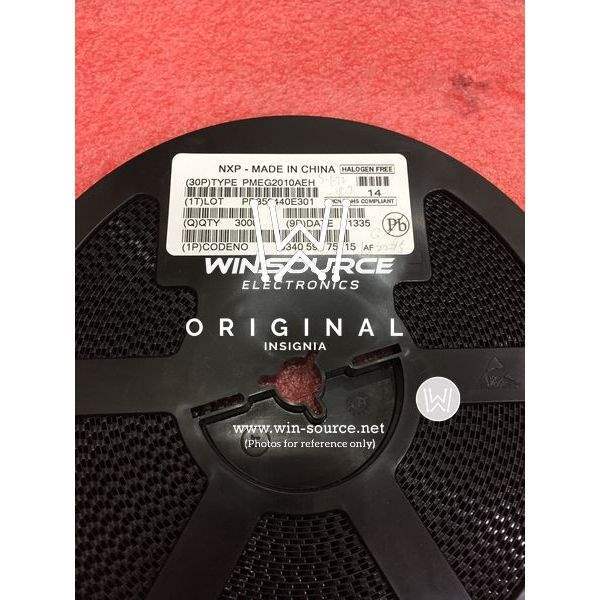

PMEG2010AEH,115 Nexperia USA Inc. PMEG2010AEH,115 label picture PMEG2010AEH,115 label picture 2
Same model may have multiple batches, images only for reference.
PMEG2010AEH,115 Nexperia USA Inc. PMEG2010AEH,115 label picture PMEG2010AEH,115 label picture 2
PMEG2010AEH,115 Nexperia USA Inc. PMEG2010AEH,115 label picture PMEG2010AEH,115 label picture 2
Same model may have multiple batches, images only for reference.

PMEG2010AEH,115

Part No PMEG2010AEH,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A SOD123F
Datasheet
PMEG2010AEH,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 430mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 200μA @ 20V
Capacitance @ Vr, F 70pF @ 5V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123F
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089546-PMEG2010AEH,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMEG2010AEH,115 CAD Model

Description

The Nexperia USA Inc. PMEG2010AEH,115 is a Schottky diode with a maximum reverse voltage of 20V and a forward voltage of 430mV at 1A.

  • Average Rectified Current (DC): 1A
  • Reverse Leakage Current: 200μA @ 20V
  • Capacitance: 70pF @ 5V, 1MHz
  • Package: SOD-123F
