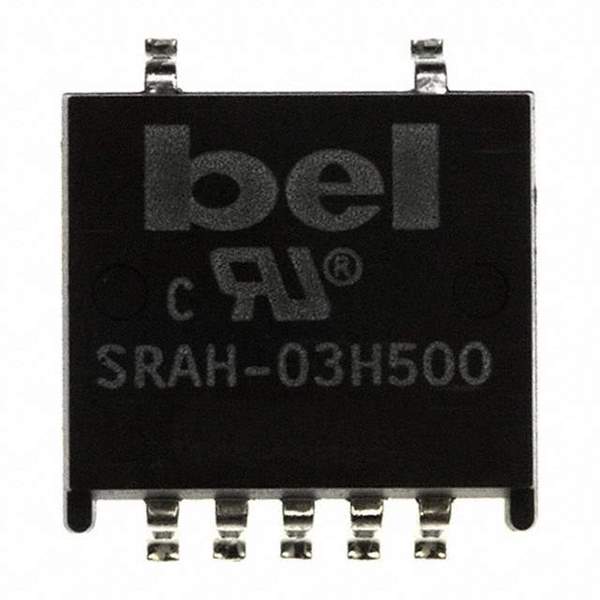

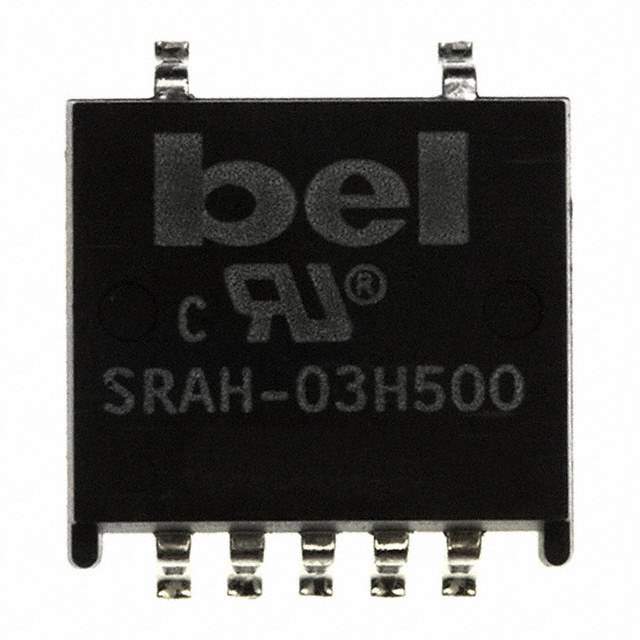

The SRAH-03H500 is a common mode choke from Bel Fuse Inc. Common mode chokes are electronic components used to suppress common-mode noise in electronic circuits. They are particularly useful in filtering unwanted signals from power lines and data cables, improving the performance and reliability of electronic devices.

Applications:

• Power Line Filtering
• USB Cables
• Data Cables (e.g., Ethernet)
• Audio Equipment
• Video Equipment
• Switching Power Supplies

Features:

• High Common Mode Impedance: Provides significant attenuation of common-mode noise.
• Low Differential Mode Impedance: Minimally affects the desired signal.
• Compact Size: Allows for easy integration into various applications.
• Wide Frequency Range: Operates effectively over a wide range of frequencies.
• High Current Capability: Can handle significant current without saturating.

Benefits:

• Noise Suppression: Effectively reduces common-mode noise, improving signal integrity.
• Improved EMC Performance: Helps to meet electromagnetic compatibility (EMC) requirements.
• Enhanced Signal Quality: Minimizes unwanted interference in data and audio signals.
• Increased System Reliability: Protects sensitive electronic components from noise-related damage.
• Simplified Design: Easy to integrate into existing circuits.

Additional Details:

The SRAH-03H500 common mode choke typically consists of two identical windings on a common core. The windings are configured such that the magnetic fields generated by differential-mode currents cancel each other out, while the magnetic fields generated by common-mode currents add together, creating a high impedance to common-mode noise. The impedance characteristics, current rating, and operating frequency range are important parameters to consider when selecting a common mode choke. The datasheet should always be consulted for specific electrical characteristics, such as inductance, DC resistance, and insulation voltage. The physical dimensions and mounting style are also important considerations for mechanical integration. It's commonly used to filter out noise from external sources, such as power lines or nearby electronic devices, and it will improve compliance with regulatory standards for electromagnetic interference (EMI).
