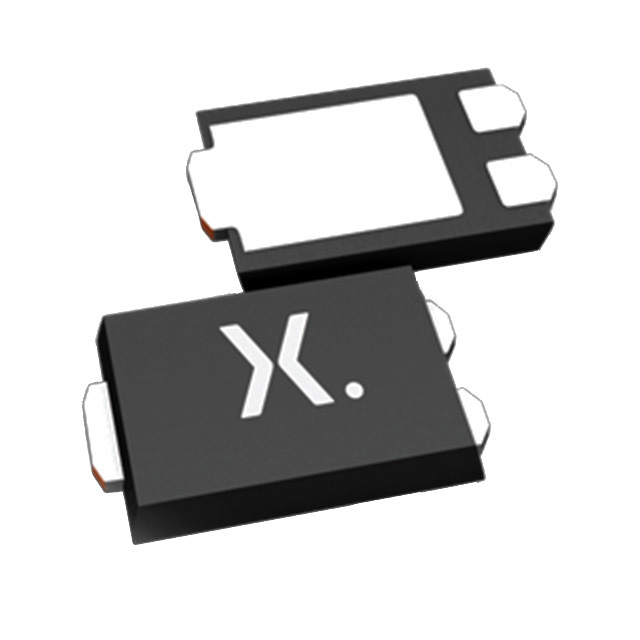

PMEG060V100EPDAZ

Name: PMEG060V100EPDAZ
Brand: Nexperia USA Inc.
SKU: 726044
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PMEG060V100EPDAZ
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 60V 10A CFP15
Datasheet	PMEG060V100EPDAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Not For New Designs
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	60 V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	560 mV @ 10 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	33 ns
Current - Reverse Leakage @ Vr	700 µA @ 60 V
Capacitance @ Vr, F	350pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	CFP15
Operating Temperature - Junction	175°C (Max)
Base Product Number	PMEG060
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	726044-PMEG060V100EPDAZ
Ultra Librarian 3D Model	Ultra Librarian PMEG060V100EPDAZ CAD Model

Alternative Products

Description

The 726044-PMEG060V100EPDAZ is a single schottky diode from Nexperia USA Inc.

Series: Automotive AEC-Q101
Category: Discrete semiconductor products
Mounting Type: Surface mountable
Package: TO-277, 3-PowerDFN
Maximum Voltage: 60 V
Average Rectified Current: 10A
Forward Voltage: 560 mV @ 10 A
Reverse Recovery Time: 33 ns
Reverse Leakage Current: 700 µA @ 60 V
Capacitance: 350pF @ 10V and 1MHz
Maximum Junction Temperature: 175°C
Standard Package: 5,000 pcs
Status: Not currently recommended for new designs
