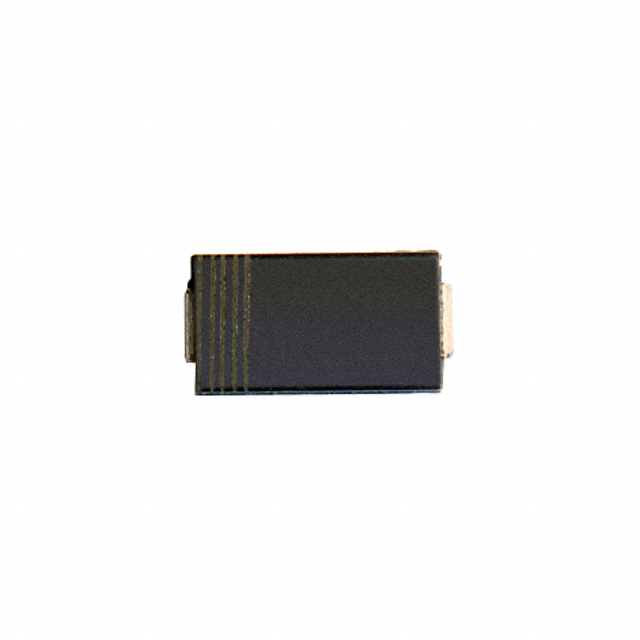

Same model may have multiple batches, images only for reference.
PDZ15BZ Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PDZ15BZ

Part No PDZ15BZ
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 15V 400MW SOD323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Voltage - Zener (Nom) (Vz) 15 V
Tolerance ±2%
Power - Max 400 mW
Impedance (Max) (Zzt) 80 Ohms
Current - Reverse Leakage @ Vr 50 nA @ 11 V
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 100 mA
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Case / Package SC-76, SOD-323
Supplier Device Package SOD-323
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1493829-PDZ15BZ
Ultra Librarian 3D Model Ultra Librarian PDZ15BZ CAD Model

Description

N
