The NPIC6C596PW-Q100 118 is an 8-bit serial-to-parallel converter with open-drain outputs. It is designed for automotive applications, as indicated by the 'Q100' designation, which signifies compliance with the AEC-Q100 automotive qualification standard. This device is commonly used to drive LEDs, relays, and other loads in automotive electronic systems.

Applications:

• Automotive Lighting: Used for controlling LEDs in automotive lighting systems, such as tail lights and brake lights.
• Relay Driving: Employed to drive relays in automotive control systems.
• Solenoid Control: Utilized for controlling solenoids in automotive applications.
• Automotive Instrument Clusters: Used to drive displays and indicators in automotive instrument clusters.

Features:

• 8-Bit Serial-to-Parallel Converter: Converts serial data into parallel data for driving multiple loads.
• Open-Drain Outputs: Provides open-drain outputs for driving external loads with various voltage levels.
• AEC-Q100 Qualified: Complies with the AEC-Q100 automotive qualification standard, ensuring high reliability in automotive environments.
• Wide Operating Voltage Range: Operates over a broad voltage range, enhancing design flexibility.

Benefits:

• Simplified Load Control: Serial-to-parallel conversion simplifies the control of multiple loads.
• Flexible Load Driving: Open-drain outputs allow for driving loads with various voltage levels.
• High Reliability: AEC-Q100 qualification ensures high reliability in automotive environments.
• Reduced Component Count: Integrated features reduce the need for external components.

Additional Details:

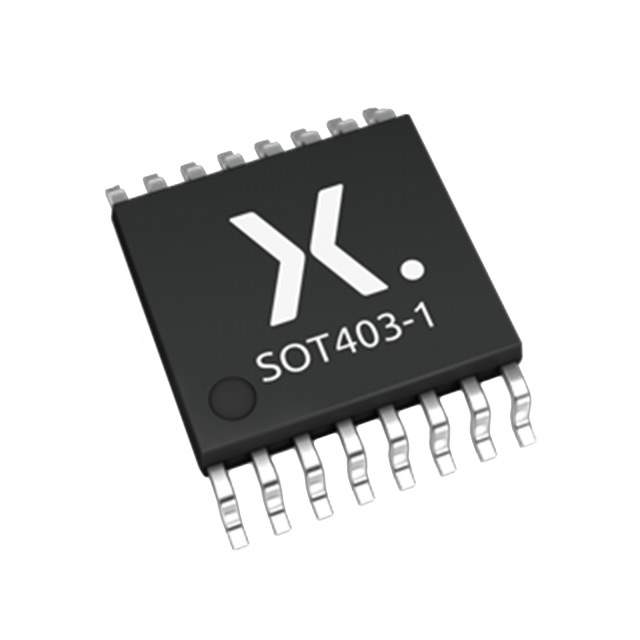

The NPIC6C596PW-Q100 118 operates at a supply voltage of 4.5V to 5.5V. It is available in a TSSOP (Thin Shrink Small Outline Package) package. The device is controlled via a serial interface, typically SPI or a similar protocol. The '118' suffix is a packing code. Proper load selection and current limiting are crucial for preventing damage to the device. The AEC-Q100 standard specifies various stress tests, including temperature cycling, humidity testing, and vibration testing, to ensure that the device meets the stringent requirements of automotive applications.
