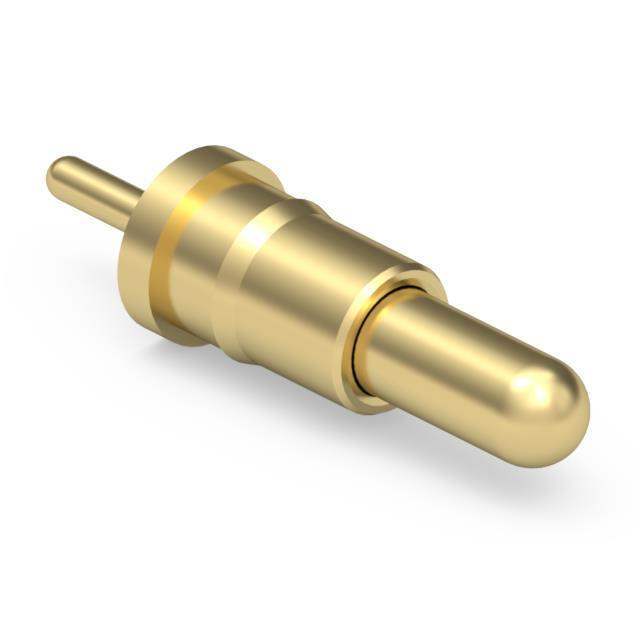

0914-0-15-20-77-14-11-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

0914-0-15-20-77-14-11-0

Part No 0914-0-15-20-77-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED T/H GOLD
Datasheet
0914-0-15-20-77-14-11-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202563-0914-0-15-20-77-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Category Connectors, Interconnects- Contacts Contacts, Spring Loaded (Pogo Pins), and Pressure
Series 914
Package Bulk
Product Status Active
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting Type Through Hole
Recommended Working Height 0.229" (5.82mm)
Contact Material Brass Alloy
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian 0914-0-15-20-77-14-11-0 CAD Model

Description

The Mill-Max Manufacturing Corp. 1202563 is a contact from the 914 series. The Mill-Max Manufacturing Corp. 1202563 is an active product and is widely used in various connector and interconnect applications.

  • Series: 914
  • Type: Sleeve and Plunger (Pogo Pins)
  • Contact Finish: Gold
  • Material: Brass Alloy
  • Mounting: Through-Hole
  • Recommended Working Height: 0.229" (5.82mm)
  • Product Status: Active
