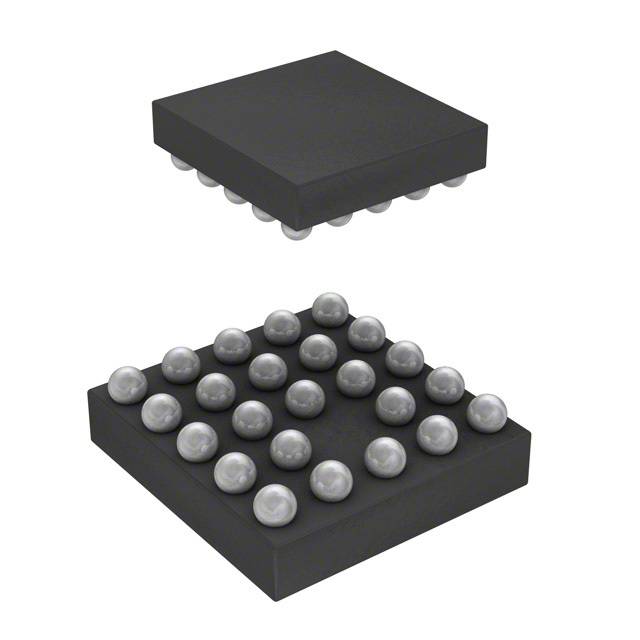

Same model may have multiple batches, images only for reference.
IP4338CX24/LF/P,13 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4338CX24/LF/P,13

Part No IP4338CX24/LF/P,13
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 70 OHM/25PF SMD
Datasheet
IP4338CX24/LF/P,13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 10
Attenuation Value 20dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 70
Current 33mA
Values R = 70 Ohms, C = 25pF
ESD Protection Yes
Temperature Range - Operating -30°C to 85°C
Applications LAN, PCS, WAN
Mounting SMD (SMT)
Dimension 0.079" L x 0.077" W (2.01mm x 1.96mm)
Height 0.026" (0.65mm)
Win Source Part Number 1045690-IP4338CX24/LF/P,13
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian IP4338CX24/LF/P,13 CAD Model

Description

The Nexperia USA Inc. IP4338CX24/LF/P,13 is a reel - TR SMD (SMT) filter with a low pass type and 10 channels.

  • Filter Type: Low Pass
  • Channels: 10
  • Current: 33mA
  • Attenuation: 20dB @ 800MHz to 3GHz
  • Filter Order: 2nd
  • Resistance - Channel (Ohms): 70
  • R Value: 70 Ohms
  • C Value: 25pF
  • Category: Filters
  • Operating Temperature: -30°C to 85°C
  • Dimension: 0.079" L x 0.077" W (2.01mm x 1.96mm)
  • Supply and Demand: Balanced
  • Package Quantity: 4,500
