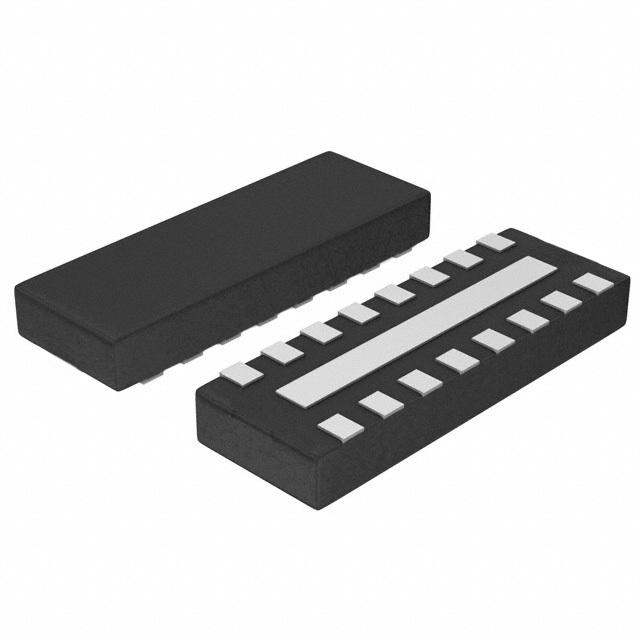

IP4253CZ16-8-TTL,1 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4253CZ16-8-TTL,1

Part No IP4253CZ16-8-TTL,1
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 200 OHM/30PF SMD
Datasheet
IP4253CZ16-8-TTL,1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Attenuation Value 33dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 200
Values R = 200 Ohms, C = 30pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications LAN, WAN
Mounting SMD (SMT)
Dimension 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045660-IP4253CZ16-8-TTL,1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IP4253CZ16-8-TTL,1 CAD Model

Description

The Nexperia USA Inc. IP4253CZ16-8-TTL is a low pass filter integrated circuit with eight channels.

  • Mounting Type: Surface-mount device (SMD)
  • Case Size: 0.130" L x 0.053" W (3.30mm x 1.35mm)
  • Application: LAN and WAN
  • Technology: RC (Pi)
  • Attenuation @ 800MHz to 3GHz: 33dB
  • Filter Order: 2nd order
  • Resistance per Channel: 200 Ohms
  • Total Capacitance: 30pF
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -40°C to 85°C
