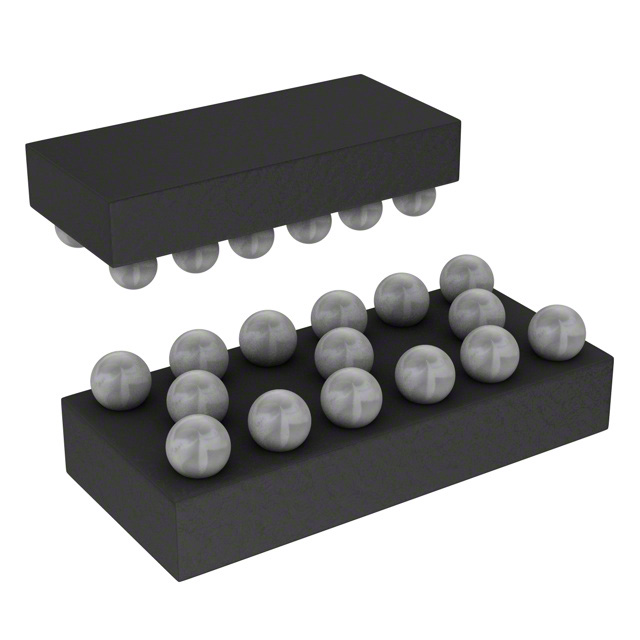

Same model may have multiple batches, images only for reference.
IP4053CX15/LF,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4053CX15/LF,135

Part No IP4053CX15/LF,135
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/60PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 60pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height 0.026" (0.65mm)
Win Source Part Number 1045638-IP4053CX15/LF,135
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4053CX15/LF,135 CAD Model

Description

The Nexperia IP4053CX15/LF,135 is a 6-channel low pass filter that comes in an SMD (SMT) package.

  • Application: data lines for mobile devices
  • Technology: RC (Pi)
  • Resistance - Channel (Ohms): 100
  • Values: R = 100 Ohms, C = 60pF
  • Supply and Demand Status: sufficient
