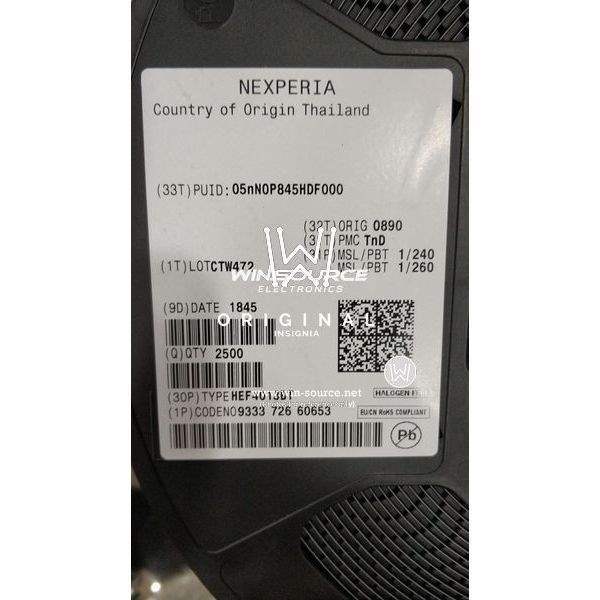

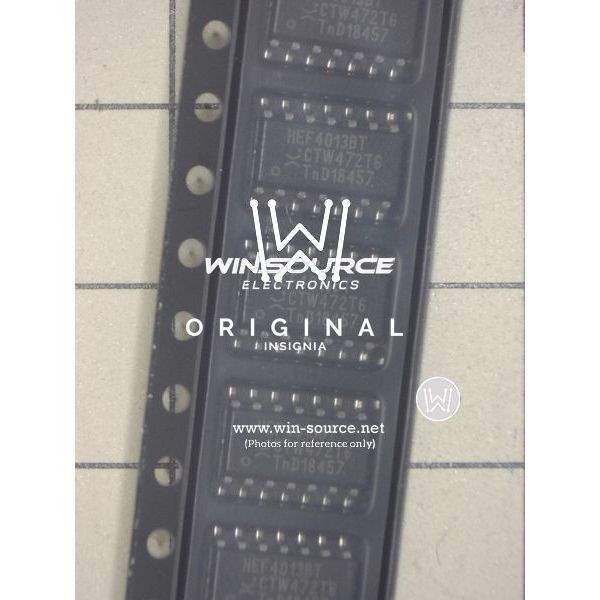

HEF4013BT,653 Nexperia USA Inc. HEF4013BT,653 label picture HEF4013BT,653 real image HEF4013BT,653 label picture 2
Same model may have multiple batches, images only for reference.
HEF4013BT,653 Nexperia USA Inc. HEF4013BT,653 label picture HEF4013BT,653 real image HEF4013BT,653 label picture 2
HEF4013BT,653 Nexperia USA Inc. HEF4013BT,653 label picture HEF4013BT,653 real image HEF4013BT,653 label picture 2
Same model may have multiple batches, images only for reference.

HEF4013BT,653

Part No HEF4013BT,653
Manufacturer Nexperia USA Inc.
Catalog Logic - Flip Flops
Description IC D-TYPE POS TRG DUAL 14SOIC
Datasheet
HEF4013BT,653 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Purpose Set(Preset) and Reset
Type D-Type
Output Type Differential
Number of Elements 2
Number of Bits per Element 1
Max Frequency 40MHz
Max Propagation Delay @ V, Max CL 60ns @ 15V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 3.4mA, 3.4mA
Supply Voltage - Operating 3 V to 15 V
Current - Quiescent 4μA
Input Capacitance 7.5pF
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Dimension 14-SOIC (0.154", 3.90mm Width)
Win Source Part Number 1005378-HEF4013BT,653
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HEF4013BT,653 CAD Model

Description

The Nexperia USA Inc. HEF4013BT,653 is a D-type differential output flip-flop integrated circuit with 2 elements and 1 bit per element.

  • Elements: 2
  • Bits per Element: 1
  • Propagation Delay: 60ns @ 15V and 50pF (Maximum)
  • Trigger Type: Positive Edge
  • Output Current High: 3.4mA
  • Output Current Low: 3.4mA
  • Current Quiescent: 4μA
  • Input Capacitance: 7.5pF
  • Mounting Type: 14-SOIC
  • Operating Temperature: -40°C to 125°C
  • Purpose: Set (Preset) and Reset
  • Supply Voltage: 3V to 15V
  • Status: Active
  • Popularity: Medium
