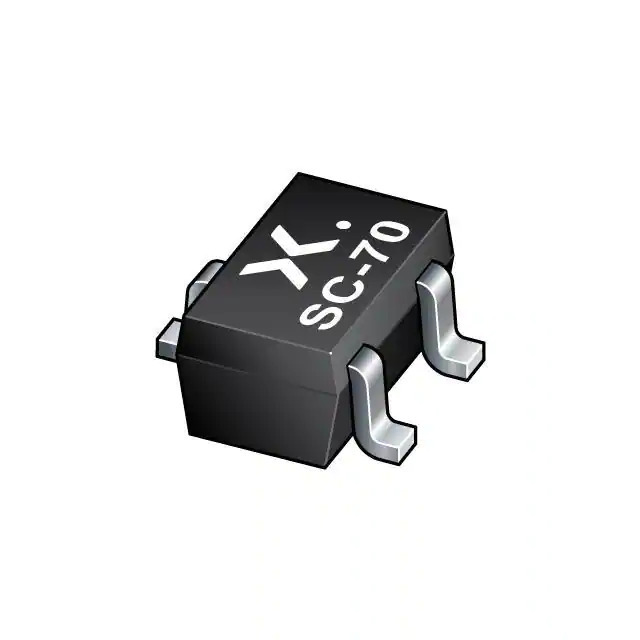

BAS16WF

Name: BAS16WF
Brand: Nexperia USA Inc.
SKU: 1367292
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAS16WF
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 100V 175MA SOT323
Datasheet	BAS16WF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101, BAS16
Package	Tape & Reel
Product Status	Active
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	175mA
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 150 mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4 ns
Current - Reverse Leakage @ Vr	500 nA @ 80 V
Capacitance @ Vr, F	1.5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Operating Temperature - Junction	150°C (Max)
Base Product Number	BAS16
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Win Source Part Number	1367292-BAS16WF
Ultra Librarian 3D Model	Ultra Librarian BAS16WF CAD Model

Description

The BAS16WF is a standard rectifier diode from Nexperia USA Inc.

Device Function: Diode, Rectifier
Application: Discrete Semiconductor
Mounting Type: Surface Mount
Package / Case: SC-70, SOT-323
Maximum Operating Temperature: 150°C
Vr - Maximum Reverse Voltage: 100 V
Io - Average Rectified Current: 175 mA
Vf - Forward Voltage: 1.25 V @ 150 mA
Speed: Small Signal =< 200MHz (trr=4ns)
trr - Reverse Recovery Time: 4 ns
Ir - Reverse Leakage Current @ Vr: 500 nA @ 80 V
Capacitance @ Vr, F: 1.5 pF @ 0V, 1 MHz
