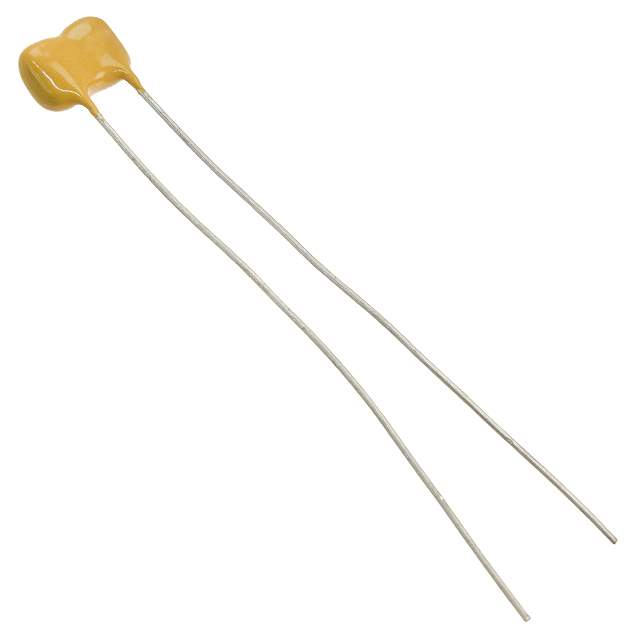

CD5EC220DO3F

Part No CD5EC220DO3F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 22PF 0.5PF 300V RADIAL / Cap Mica 22pF 300V 0.5pF (6.9 X 3 X 5.1mm) Radial 3mm 125°C
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CD5
Packaging Bulk
Capacitance 22pF
Tolerance ±0.5pF
Voltage Rating DC 300V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package Radial
Lead Spacing 0.118" (3.00mm)
Features General
Dimension 0.272" L x 0.118" W (6.90mm x 3.00mm)
Height - Seated (Maximum) 0.201" (5.10mm)
Win Source Part Number 777765-CD5EC220DO3F
Popularity Medium
Supply and Demand Status Limited
Family Name CD5
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CD5EC220DO3F CAD Model

Description

The Cornell Dubilier Electronics (CDE) CD5EC220DO3F capacitor is a radial, through-hole mounted capacitor that is ideal for general purpose applications.

  • Capacitance: 22pF
  • Voltage Rating: 300V
  • Tolerance: ±0.5pF
  • Lead Spacing: 0.118" (3.00mm)
  • Dielectric Material: Mica
  • Height: 0.201" (5.10mm)
  • Package: Radial
  • Dimension: 0.272" L x 0.118" W (6.90mm x 3.00mm)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Estimated EOL: 2027
