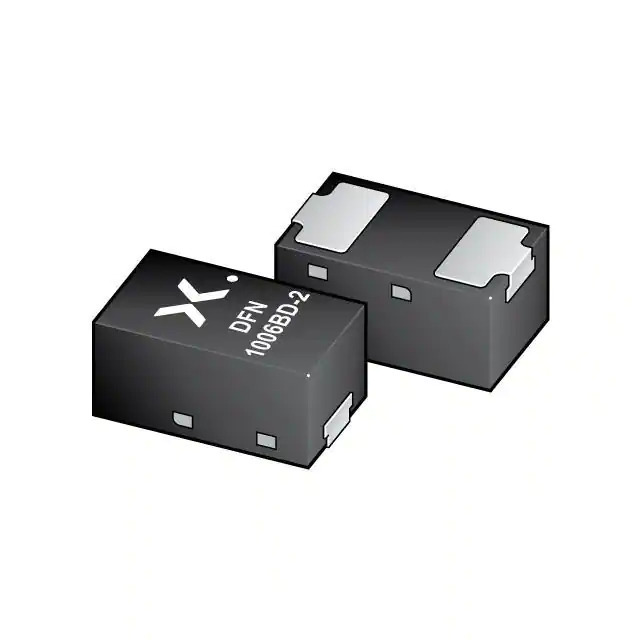

Same model may have multiple batches, images only for reference.

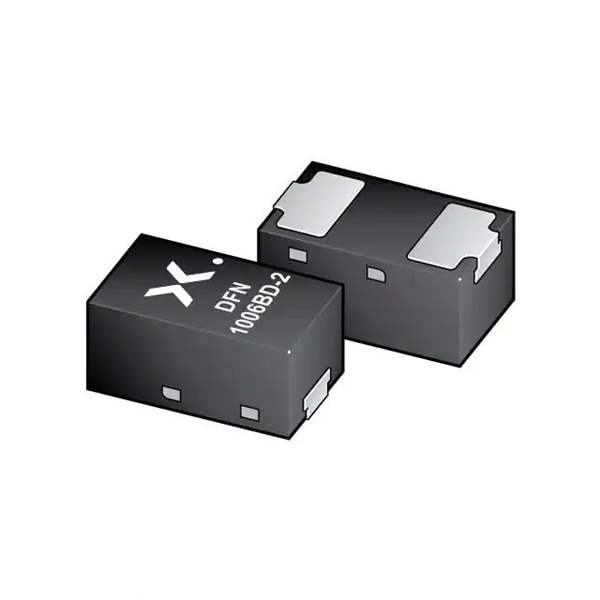

BAS16LS-QYL Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAS16LS-QYL

Part No BAS16LS-QYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GP 100V 215MA DFN1006BD-2
Datasheet
BAS16LS-QYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 215mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-882
Supplier Device Package DFN1006BD-2
Operating Temperature - Junction 150°C
Base Product Number BAS16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367363-BAS16LS-QYL
Ultra Librarian 3D Model Ultra Librarian BAS16LS-QYL CAD Model

Description

The BAS16LS-QYL is a rectifier diode from Nexperia USA Inc.

  • Series: BAS16
  • Application: Automotive, AEC-Q100
  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 215mA
  • Recovery Time: Less than 500ns (Fast)
  • Forward Voltage Drop: 1.25V @ 150mA
  • Package: SOD-882, Surface Mount
  • Reverse Leakage Current: 500nA @ 80V
  • Capacitance: 1.5pF @ 0V and 1MHz
  • Junction Temperature: Up to 150°C
  • Applications: High-Speed Switching
