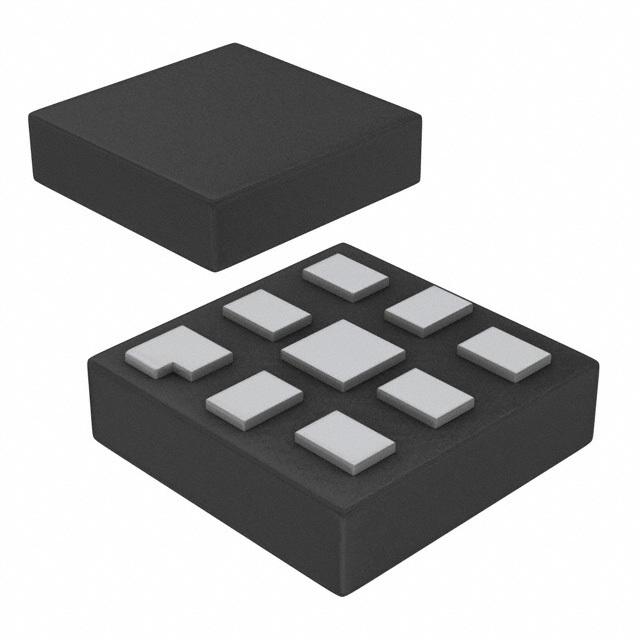

Same model may have multiple batches, images only for reference.
74LVC2G74GM,125 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC2G74GM,125

Part No 74LVC2G74GM,125
Manufacturer Nexperia USA Inc.
Catalog Logic - Flip Flops
Description IC D-TYPE POS TRG SNGL 8XQFN
Datasheet
74LVC2G74GM,125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Purpose Set(Preset) and Reset
Type D-Type
Output Type Differential
Number of Elements 1
Number of Bits per Element 1
Max Frequency 200MHz
Max Propagation Delay @ V, Max CL 4.1ns @ 5V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 32mA, 32mA
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent 40μA
Input Capacitance 4pF
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Dimension 8-XFQFN Exposed Pad
Win Source Part Number 1009421-74LVC2G74GM,125
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 74LVC2G74GM,125 CAD Model

Description

The 74LVC2G74GM,125 is a surface mount D-Type differential output type integrated circuit manufactured by Nexperia USA Inc.

  • Maximum Propagation Delay: 4.1ns @ 5V, 50pF
  • Current Output High, Low: 32mA, 32mA
  • Quiescent Current: 40μA
  • Number of Elements: 1
  • Number of Bits per Element: 1
  • Category: Integrated Circuits
  • Status: Active
  • Temperature Range: -40°C to 125°C (TA)
  • Package: 8-XFQFN Exposed Pad
  • Purpose: To set (preset) and reset
  • Supply Voltage: 1.65 V to 5.5 V
  • Maximum Frequency: 200MHz
  • Alternative Parts (cross-reference): SN74LVC1G74RSE2, 74LVC2G74GM, and 74LVC1G74GM,115
  • Supply and Demand Status: Balanced
