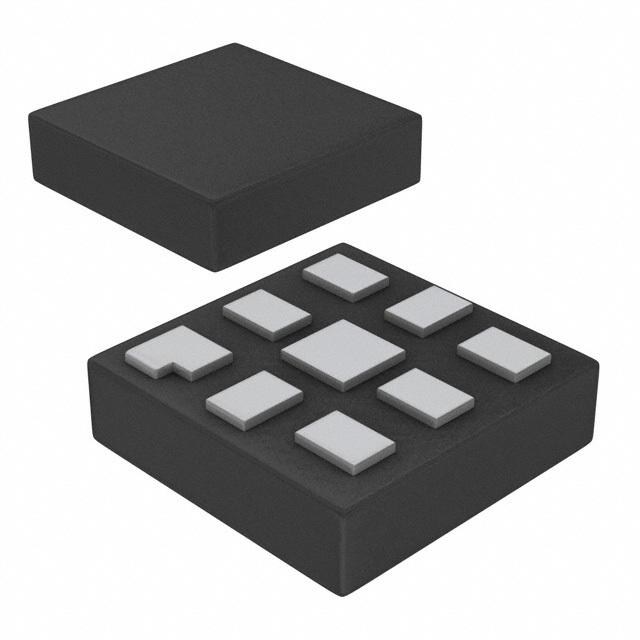

Same model may have multiple batches, images only for reference.
74LVC2G02GM,125 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC2G02GM,125

Part No 74LVC2G02GM,125
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE NOR 2CH 2-INP 8-XQFN
Datasheet
74LVC2G02GM,125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Logic Type NOR Gate
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 4μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.7 V to 0.8 V
Logic Level - High 1.7 V to 2 V
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 8-XQFN (1.6x1.6)
Dimension 8-XFQFN Exposed Pad
Win Source Part Number 1009358-74LVC2G02GM,125
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 74LVC2G02GM,125 CAD Model

Description

The Nexperia USA Inc. 74LVC2G02GM,125 is an integrated circuit that has a NOR gate logic type.

  • Manufacturer: Nexperia USA Inc.
  • Logic Type: NOR Gate
  • Inputs: Two
  • Circuits: Two
  • Current Output High: 32mA
  • Current Output Low: 32mA
  • Case/Package: 8-XQFN (1.6x1.6)
  • Mounting Type: SMD (SMT)
  • Operating Temperature Range: -40°C to 125°C
  • Supply Voltage: 1.65 V to 5.5 V
