Same model may have multiple batches, images only for reference.

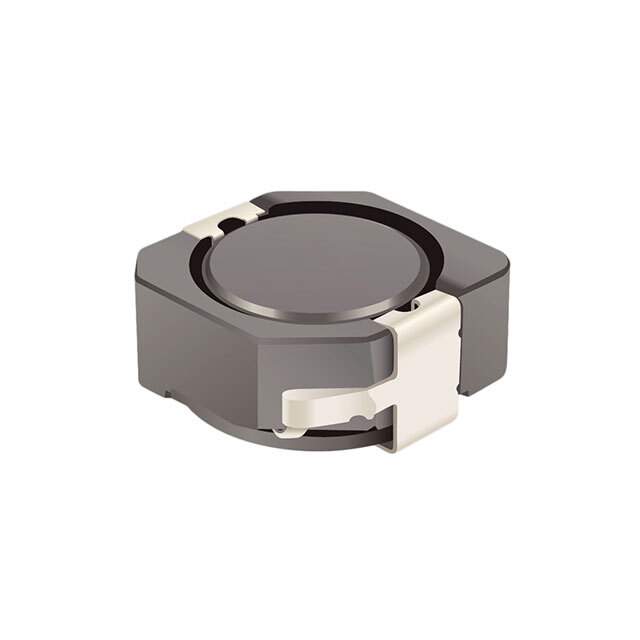

SRR1050A-270Y Real Image
Same model may have multiple batches, images only for reference.

SRR1050A-270Y

Part No SRR1050A-270Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1050A-270Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1050A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±30%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 77mOhm Max
Frequency - Self Resonant 10MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRR1050A
Other Names SRR1050A-270YDKR,SRR1050A-270YTR,SRR1050A-270YCT
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273560-SRR1050A-270Y
Ultra Librarian 3D Model Ultra Librarian SRR1050A-270Y CAD Model

Description

The Bourns Inc. SRR1050A-270Y is a shielded drum core wirewound inductor with an inductance of 27 µH and a tolerance of ±30%.

  • Core Material: Ferrite
  • DC Resistance: 77mOhm Max
  • Temperature Range: -40°C to 125°C
  • Current Rating: 2.6A
  • AEC-Q200 Rated: Yes
  • Package: Nonstandard tape and reel
  • Q @ Freq: -
  • Frequency - Self-Resonant: 10MHz
  • Dimension: 0.402" L x 0.394" W (10.20mm x 10.00mm)
  • Height: 0.201" (5.10mm)
